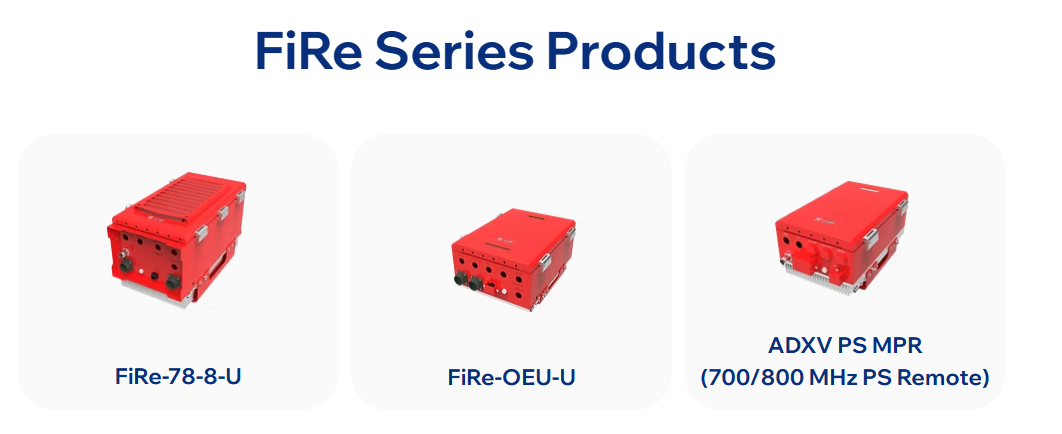

In times of emergency, seamless and reliable communication is crucial for the safety of first responders and building occupants alike. The ADRF’s FiRe™ Series is a revolutionary Band14 compliant Fiber-optic Repeater.

​Fight fire with FiRe™.

Benefits:

• ALL-IN-ONE – Repeater and fiber DAS Head End (HE) in a single unit
• COST EFFECTIVE – All equipment in an IP66 rated enclosure and no additional enclosures are needed
• CODE COMPLIANT – NFPA, IFC, UL Certified and Compliant

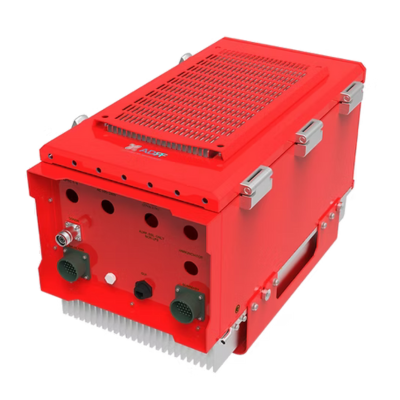

Fiber Optic Repeater For 700/800 MHz

(FiRe-78-8-U)

• Channelized 700/800 MHz Repeater and fiber DAS Head End (HE) in a single unit
• Adheres to NFPA/IFA Code
• UL 2524 Certified Second Edition
• Up to 32 narrowband and 2 wideband channel support for PS 700 (including Band 14) or PS 800
• Natively supports up to 8 Remote Units or 36 Remote Units in combination with OEU
• Oscillation detection feature with automatic amplifier shutdown routine
• Supports up to 33 dBm composite output power per Remote Unit (sold separately)
• Type 4 / NEMA 4 Enclosure
• Supports dry contact alarming and up to 24 hours of battery backup (sold separately)
• Alarming output to supervised circuits for antenna, amplifier, AC or DC power supply battery, and charger failure
• Supports up to two PSR-ANN-L annunciators to provide visual and audible alarms

Optical Expansion Unit For FiRe Series

(FiRe-OEU-U)

• UL 2524 Certified Second Edition
• Expands support by 8 additional RU per OEU
• Supports dry contact alarming for Remote Summary and FiRe-OEU
• Supports an optional PSR-ANN-L annunciator
• Supports battery backup

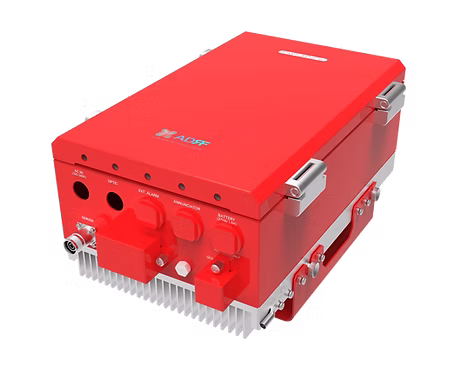

ADXV Mid-Power Remote For Public Safety

(ADXV PS MPR 700/800 MHz)

• Support of 758-775 MHz and 851-869 MHz
• Support of Canadian public safety frequencies (768 – 776 MHz and 851-869 MHz)
• 33 dBm Composite Output Power
• Dry Contact Alarming
• Built-in Spectrum Analyzer
• Detachable AC/BATT/ANN/AAI wiring terminal blocks for easy installation
• Separate 700/800 MHz downlink (DL) amplifiers to prevent noise from the unused band
• Programmable 3-pin AAI alarm which can be physically cabled as NO or NC
• An optional 47K Ohm end-of-line resistor board cartridge
