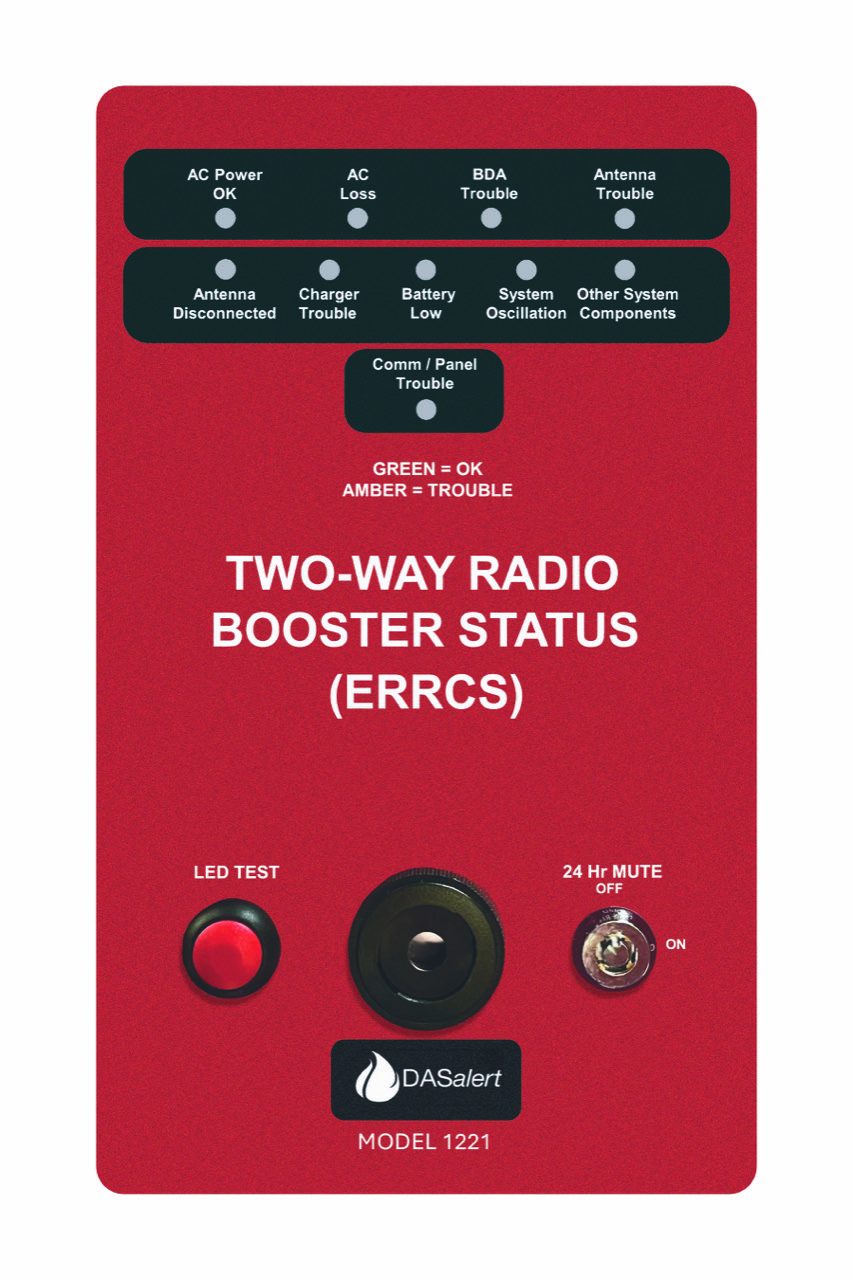

DASalert Universal Remote Annunciator Panel 1221

DAS Alert’s Universal Public Safety Annunciator is an industry favorite with over 3,000 installed, meeting or exceeding all NFPA, International (IFC), UL and local requirements, and is operational with any BDA, BBU and Fire Panel. It is favored by AHJ’s everywhere for the internal FAIL-SAFE backup power supply keeping the Panel working for over 24 hours if the building’s primary AC and BBU power are offline.

Features:

• Works with any BDA / BBU
• Compact, attractive form-factor (7.8” H x 4.7” W x 3.0” D)
• Provides 10 visible LEDs and Audible alerts
• Audible function can be disabled
• Powered by 12 to 55 VDC from BBU or included power supply
• Per code, monitors for circuit faults between headend and annunciator
• Supports up to eight (8) input alarms from NO or NC alarm relays
• Provides up to twelve (12) NO or NC output relays to Fire Panel
• Summary alarm relay to Fire Panel activates if any of the 8 input alarms are active
• Supports up to 5,000-ft CAT 5/6 distance between BDA / BBU and annunciator
• Nine knockout plugs-ports provided to support any conduit arrangement
• Can be daisy- chained to an unlimited number of additional Panels
• Flush in-wall or surface mounting
