Alliance Corporation proudly distributes Westell UL2524 Public Safety BDA Kits across North America, providing reliable solutions for in-building emergency responder communications.
Westell’s ProtectLink™ BDA kits feature 700/800 MHz dual-band support, Class A/B operation, intelligent oscillation management, and 12- or 24-hour battery backup options. Designed to support NFPA requirements and UL2524 standards, these complete kits simplify ERCES deployments while enhancing critical radio coverage for first responders. Backed by Alliance’s technical expertise and solution support, we help integrators and contractors find the right BDA solutions for their projects.

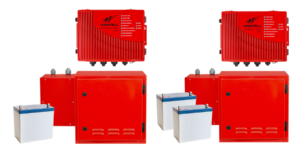

CS45-727-827-K1 CS45-727-827-K2
1/2W 700/800 MHz BDA Kits
CS45 1/2W Series:
UL2524 BDA kit featuring the ProtectLink™ CS45 Series 1/2W BDA
| 1/2W CS45 ProtectLink™ | BDA Kit Order Number | BDA | Battery Cabinet / Unit | Back-Up Batteries |
| 12-Hour BDA Kit | CS45-727-827-K1 | ProtectLink NG, Class A/B, 1/2W |
CS19-BBU-004 | CS19-BAT55AHSLA (1) |
| 24-Hour BDA Kit | CS45-727-827-K2 | ProtectLink NG, Class A/B, 1/2W |
CS19-BBU-004 | CS19-BAT100AH31 (1) |

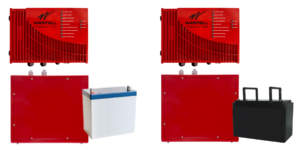

CS14-720-820-K1 CS14-720-820-K2
CS14 1/2W Series:
UL2524 BDA kit featuring the CS14 Series 1/2W enhanced BDA
| 1/2W CS14 Series: | BDA Kit Order Number: | BDA: | Battery Cabinet / Unit: | Back-Up Batteries: |
| 12-Hour BDA Kit | CS14-720-820-K1 | Enhanced BDA, Class B, 1/2W |
CS19-BBC-003 | CS19-PYL12V45FS (2) |
| 24-Hour BDA Kit | CS14-720-820-K2 | Enhanced BDA, Class B, 1/2W | CS19-BBC-003 | CS19-PYL12V100FT (2) |

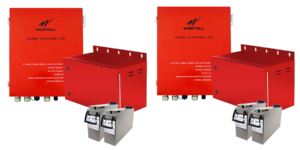

CS45-734-834-K1 CS45-734-834-K2
2.5W 700/800 MHz BDA Kits
CS45 2.5W Series:
UL2524 BDA kit featuring the ProtectLink™ CS45 Series 2.5W BDA
| 2.5W CS45 ProtectLink™: | BDA Kit Order Number: | BDA: | Battery Cabinet / Unit: | Back-Up Batteries: |
| 12-Hour BDA Kit | CS45-734-834-K1 | ProtectLink NG, Class A/B, 2.5W |
CS19-BBU-005 | CS19-BAT145AH-SLA (1) |
| 24-Hour BDA Kit | CS45-734-834-K2 | ProtectLink NG, Class A/B, 2.5W |
CS19-BBU-005 | CS19-BAT145AH-SLA (2) |

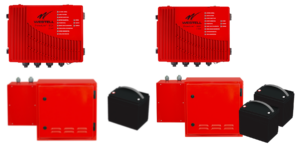

CS45-734-834-REMK1 CS45-734-834-REMK2
2.5W 700/800 MHz Fiber DAS Kits
CS45 Series:
UL2524 Fiber DAS kit featuring the ProtectLink™ CS45 Series 2.5W BDA
| 2.5W CS45 ProtectLink™ Fiber DAS | BDA Kit Order Number | BDA | Battery Cabinet / Unit | Back-Up Batteries |
| 12-Hour BDA Kit | CS45-734-834-REMK1 | ProtectLink NG, Class A/B, 2.5W |
CS19-BBU-005 | CS19-BAT145AH-SLA (1) |
| 24-Hour BDA Kit | CS45-734-834-REMK2 | ProtectLink NG, Class A/B, 2.5W |
CS19-BBU-005 | CS19-BAT145AH-SLA (2) |
