Sinclair Technologies Expandable Multicoupler
Sinclair passive RF components

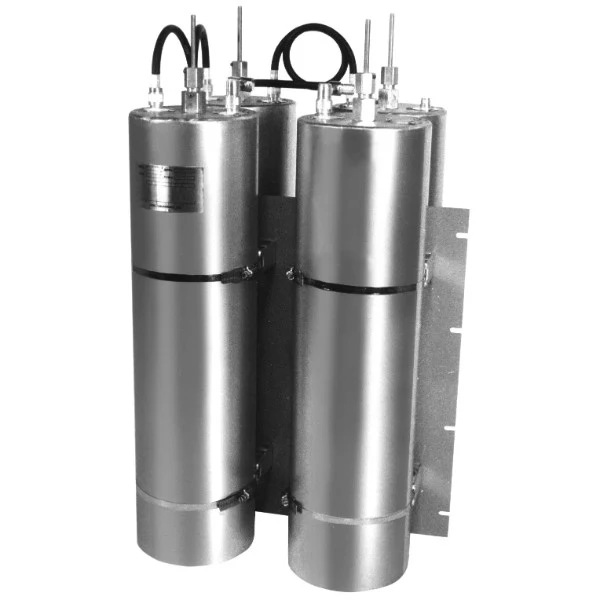

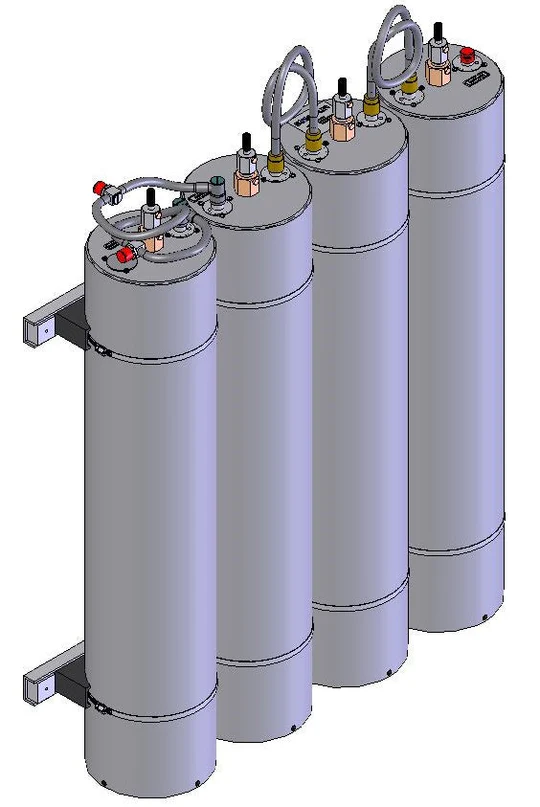

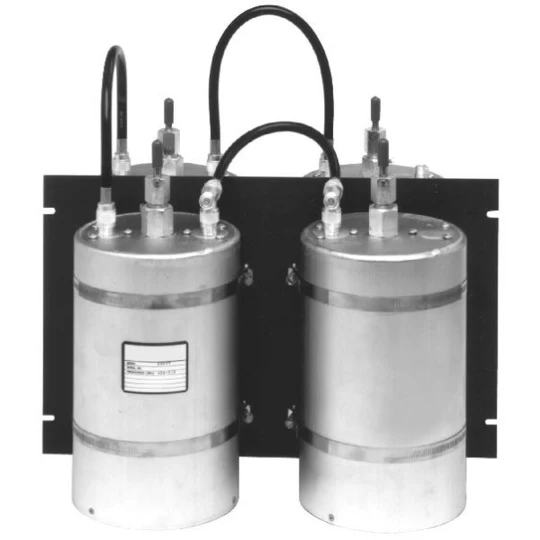

Expandable multicouplers are passive RF components designed to distribute signals from a single antenna to multiple receivers in LMR systems. They use pass-reject cavity filters to maintain high isolation and minimize interference, ensuring optimal receiver performance.
Features
- Pass-Reject Design: Provides excellent selectivity by passing desired frequencies and rejecting unwanted signals.
- Cavity-Based Construction: Uses 7″ or 8.5″ cavities for superior isolation and low insertion loss.
- Expandable Architecture: Allows easy system growth by adding more receiver ports.
- Res-Lok Technology (Optional): Ensures secure, reliable connections with minimal insertion loss.
- Frequency Options: Available for VHF and UHF bands (e.g., 108–174 MHz, 406–512 MHz).
Benefits
- Improved Receiver Performance: Reduces intermodulation and interference.
- Cost-Effective Expansion: Eliminates need for multiple antennas.
- Reliable Operation: Rugged design for long-term use in critical environments.
- Space-Saving: Supports multiple receivers from one antenna feed.
Applications
- Public Safety Networks
- Commercial LMR Systems
- Large Repeater Sites
- Mission-Critical Communication Infrastructure
Please fill out the form for the model you are interested in, and we will contact you as soon as possible!
