Sinclair Technologies Filters
Sinclair Q-Circuit cavity filter has both a pass and a reject characteristic
Filter products use cavity filters as their basic building block. A cavity filter only does one of two things. One is to allow a given range of frequencies to pass through and the second is to stop a specific range of frequencies from passing through. The Sinclair Q-Circuit cavity filter has both a pass and a reject characteristic. By connecting multiple cavities together, the pass or reject frequency range can be made quite narrow, effectively passing or rejecting only one signal. Preselectors, duplexers and custom YA systems are constructed by connecting multiple cavity filters together to achieve a desired characteristic.

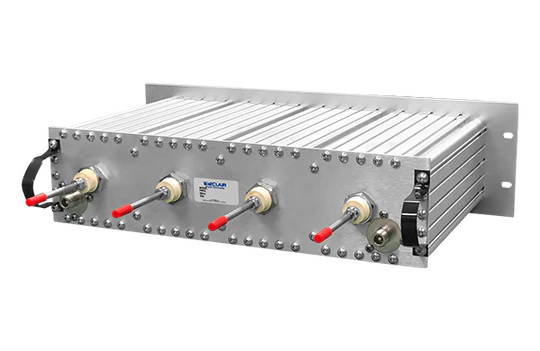

1. PIP Tx Post Filters
- Superior Signal Purity: Designed to clean up transmitted signals by removing unwanted harmonics and spurious emissions.
- High Power Handling: Built to withstand demanding transmission environments without compromising performance.
- Low Insertion Loss: Maintains signal strength for maximum efficiency in your system.
- Compact & Reliable: Space-saving design with robust construction for long-term durability.

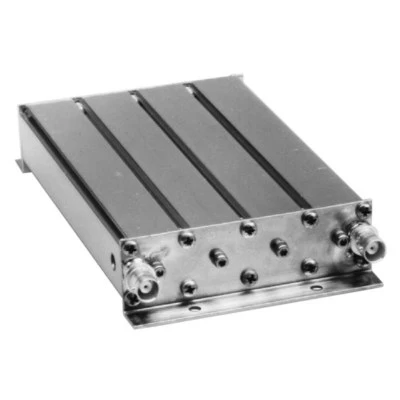

2. Cavity Filters
- Exceptional Selectivity: Precisely isolates desired frequencies while rejecting interference.
- Temperature Stability: Delivers consistent performance across varying environmental conditions.
- Customizable Bandwidth: Multiple cavity configurations for tailored filtering solutions.
- Rugged Design: Ideal for mission-critical applications in harsh environments.
3. Pre-Selectors
- Enhanced Receiver Performance: Reduces out-of-band interference for clearer communication.
- Noise Reduction: Improves sensitivity by minimizing unwanted signals before they reach the receiver.
- Compact Form Factor: Perfect for space-constrained installations.
- Wide Frequency Options: Available in multiple ranges to suit diverse system needs.

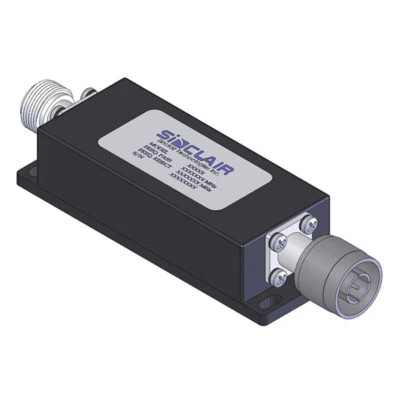

4. Lumped Element Filters
- Lightweight & Space-Efficient: Ideal for portable and compact systems.
- Cost-Effective Solution: Affordable without sacrificing quality or reliability.
- Broad Frequency Coverage: Supports various bands for flexible applications.
- Quick Integration: Easy to install and configure for rapid deployment.
Please fill out the form for the model you are interested in, and we will contact you as soon as possible!
