Microwave waveguides are high-performance transmission lines designed to carry microwave-frequency RF signals between radio equipment and antennas with extremely low loss. RFS provides elliptical and rectangular waveguide solutions optimized for telecom, broadcast, and high-capacity microwave communication systems.

Key Benefits

• Ultra-low signal loss for long-distance microwave transmission
• High power handling for demanding RF systems
• Excellent shielding and interference protection
• Reliable performance at high microwave frequencies
• Flexible and rigid options for different installations

These characteristics make waveguides ideal for high-capacity radio links and mission-critical communication systems.

Typical Specifications

Parameter	Typical Value
Transmission Type	Hollow metallic microwave transmission line
Frequency Range	~5 GHz to 15 GHz (depending on model)
Impedance	Waveguide standard (not fixed like coax)
Material	Copper or aluminum
Attenuation	Extremely low
Power Handling	Very high compared with coaxial cables

Waveguides are specifically designed for microwave radio links and high-frequency RF networks.

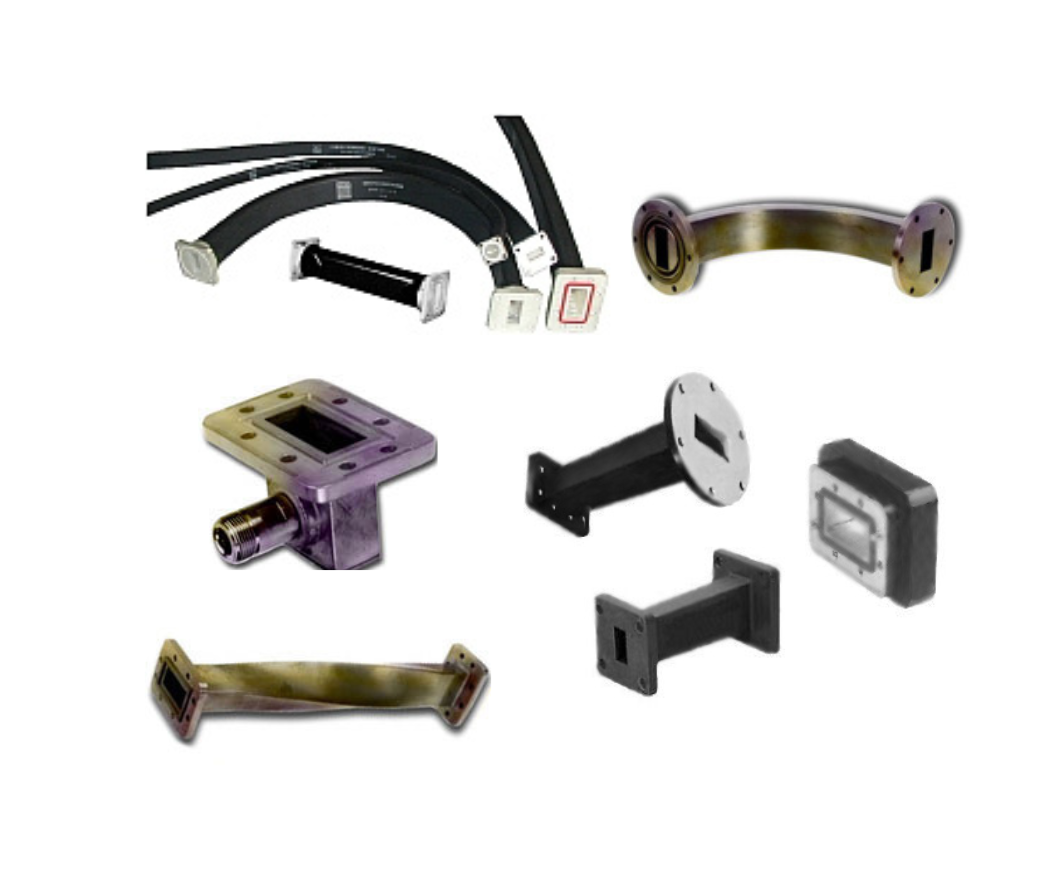

Microwave Waveguides – Product Categories Overview

Rectangular Waveguides

Rectangular waveguides are rigid precision metal transmission lines used for high-frequency microwave signals in radio equipment and antenna systems. They provide highly stable performance in fixed installations.

Key Benefits

• Ultra-low signal loss at microwave frequencies
• High mechanical stability for permanent installations
• High power handling capability
• Precise performance for microwave radio systems

Typical Specifications

Parameter	Typical Value
Frequency range	~5 – 15 GHz
Construction	Aluminum or copper
Shape	Rectangular hollow waveguide
Attenuation	Extremely low

Typical Applications

• Microwave radio equipment
• Radar systems
• Satellite communication systems

Twistflex Waveguides

Twistflex waveguides are flexible microwave waveguides designed to accommodate twists, bends, and mechanical movement while maintaining stable RF performance.

Key Benefits

• Allows twisting and bending without signal degradation
• Simplifies alignment between radio equipment and antennas
• Reduces mechanical stress in microwave systems
• Maintains high microwave transmission efficiency

Typical Specifications

Parameter	Typical Value
Frequency range	~5 – 15 GHz
Construction	Flexible corrugated structure
Transmission type	Air-filled waveguide
Mechanical capability	Twist and bend tolerance

Typical Applications

• Microwave antenna connections
• Tower-mounted radio systems
• Installations requiring flexible routing

Waveguide Tools & Accessories

Waveguide tools and accessories include installation equipment and supporting components used to assemble, maintain, and secure microwave waveguide systems.

Key Benefits

• Ensures proper installation and alignment
• Improves system reliability and performance
• Simplifies maintenance and waveguide assembly

Typical Components

• Installation tools
• Pressurization equipment
• Mounting brackets and supports
• Sealing components

Typical Applications

• Microwave tower installations
• RF infrastructure maintenance
• Waveguide system assembly

Waveguide Connectors

Waveguide connectors are specialized flange and adapter components that connect waveguide sections to RF equipment or antennas while maintaining microwave signal integrity.

Key Benefits

• Provides secure and low-loss waveguide connections
• Maintains microwave impedance matching
• Supports high-frequency and high-power transmission

Typical Connector Types

Connector Type	Description
CPR Flanges	Standard waveguide flange connections
UG Flanges	Common waveguide interface standard
Coax-to-waveguide adapters	Connect coaxial cables to waveguides

Typical Applications

• Microwave radio equipment connections
• Antenna feed systems
• High-frequency RF networks

Simple system overview

• • Rectangular Waveguides → rigid microwave transmission lines
  • Twistflex Waveguides → flexible connections with twisting capability
  • Waveguide Connectors → connect waveguide sections and equipment
  • Tools & Accessories → support installation and maintenance
