RADIAFLEX® connectors and accessories are installation and connectivity components designed specifically for RADIAFLEX radiating cables. They ensure reliable RF connections, secure cable mounting, and efficient deployment of distributed antenna systems in tunnels, buildings, and other confined environments.

Key Benefits

• Reliable RF connection between radiating cables and network equipment
• Optimized performance for RADIAFLEX radiating cable systems
• Field-installable design enables fast installation and maintenance
• Low signal loss and low PIM for modern wireless networks
• Robust mounting hardware for secure cable routing in harsh environments

Typical Specifications

Parameter	Typical Value / Feature
Impedance	50 Ω
Connector Construction	Precision RF coax connectors
Installation	Field-installable
Materials	Copper alloy / plated RF contacts
PIM Performance	Low PIM designs available
Installation Accessories	clamps, plugs, screws, mounting hardware

These components are designed to maintain high-quality connector-cable interfaces while simplifying installation.

Supported Cable Sizes

RADIAFLEX connectors and accessories support common radiating cable sizes:

Cable Size	Typical Use
1/2″	Small buildings, parking garages
7/8″	medium tunnels and indoor coverage
1-1/4″	long tunnels and infrastructure
1-5/8″	very long tunnels / high-power systems

The connector type must match the cable diameter for proper electrical and mechanical performance.

Frequency Range

These connectors support the same broadband RF range as the cables:

Typical supported range

• ~75 MHz – 6 GHz
• Supports cellular, LTE, 5G, and public safety radio networks.

Transmission Line Type

• Coaxial transmission line components
• Designed specifically for RADIAFLEX radiating coaxial cables
• Maintain 50-ohm impedance matching for RF systems.

Common Connector Interfaces

Typical connector interfaces include:

Connector Type	Typical Application
N-type	DAS systems, small RF equipment
7/16 DIN	macro cellular and high-power systems
4.3-10	modern low-PIM cellular networks
Waveguide adapters	transition between waveguide and coax

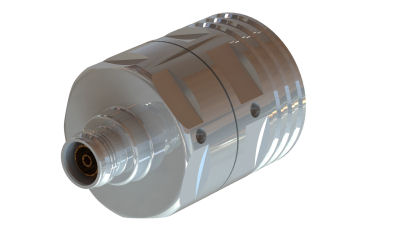

Examples include N male/female connectors, 7-16 DIN connectors, and 4.3-10 connectors designed for various RADIAFLEX cable sizes.

Installation Accessories

Common accessory types include:

• Cable clamps and hangers
• Anchor bars and mounting hardware
• Clips and heavy-duty clamps
• Plastic and metal plugs
• Screws and fastening kits
• Cable preparation and trimming tools

These ensure secure installation of radiating cables in tunnels, buildings, and infrastructure.

How to Choose the Right Connectors & Accessories

When selecting RADIAFLEX connectors and accessories, consider:

1. Cable Size Compatibility

Ensure the connector is designed for the correct cable diameter (1/2″, 7/8″, 1-1/4″, 1-5/8″).

2. Connector Interface

Choose based on equipment interface:

• 4.3-10 → modern cellular base stations
• 7/16 DIN → high-power macro systems
• N-type → DAS and indoor systems

3. Installation Environment

Select appropriate mounting hardware:

• Clamps / hangers → tunnel installations
• Heavy-duty brackets → industrial environments
• Flame-retardant accessories → safety-critical infrastructure

4. Network Performance Requirements

Consider:

• Low PIM performance
• High power handling
• Mechanical durability

Typical Applications

RADIAFLEX connectors and accessories are commonly used in:

• Railway and metro tunnels
• Road tunnels
• Underground stations
• Airports
• Large buildings and stadiums
• Public safety communication networks

They enable stable RF connectivity and secure cable installation in distributed antenna systems (DAS).

✅ Simple explanation

• RADIAFLEX cable → provides RF coverage
• RADIAFLEX connectors → connect the cable to equipment
• RADIAFLEX accessories → mount and secure the cable system
