RFS Technologies

Alliance Corporation proudly distributes RFS Technologies products throughout the USA

RFS Technologies Plenum Cables

RFS Technologies ClearFill®Line

Plenum cable is designed for installation in plenum spaces—areas like air-handling zones in ceilings or raised floors used for HVAC return air. Its jacket is made from fire-retardant, low-smoke materials such as FEP or LS-PVC, meeting strict safety standards to minimize flame spread and smoke emission during fires.


Key Features

  • Fire Safety Compliance
    Meets CMP rating and tested to NFPA standards for flame and smoke suppression.
  • Low-Smoke, Low-Toxicity
    Uses jackets that reduce toxic emissions in plenum environments.
  • Superior Electrical Performance
    Solid conductors and star-shaped dielectric for minimal signal loss and excellent VSWR up to 6 GHz.
  • Continuous RFI/EMI Shielding
    Solid outer conductor provides full shielding against interference.
  • Durable Design
    Flexible construction with wide operating temperature range for long-term reliability.

Benefits

  • Mandatory for Plenum Spaces
    Required by building codes for safety in air-return pathways.
  • Ideal for Critical Installations
    Perfect for hospitals, offices, data centers, and airports.
  • Supports Multiple Frequency Bands
    Works up to 6 GHz for cellular, Wi-Fi, DAS, and public safety systems.
  • Reliable Under High Power
    Excellent heat dissipation and stability for demanding applications.

RFS Technologies Reference Series

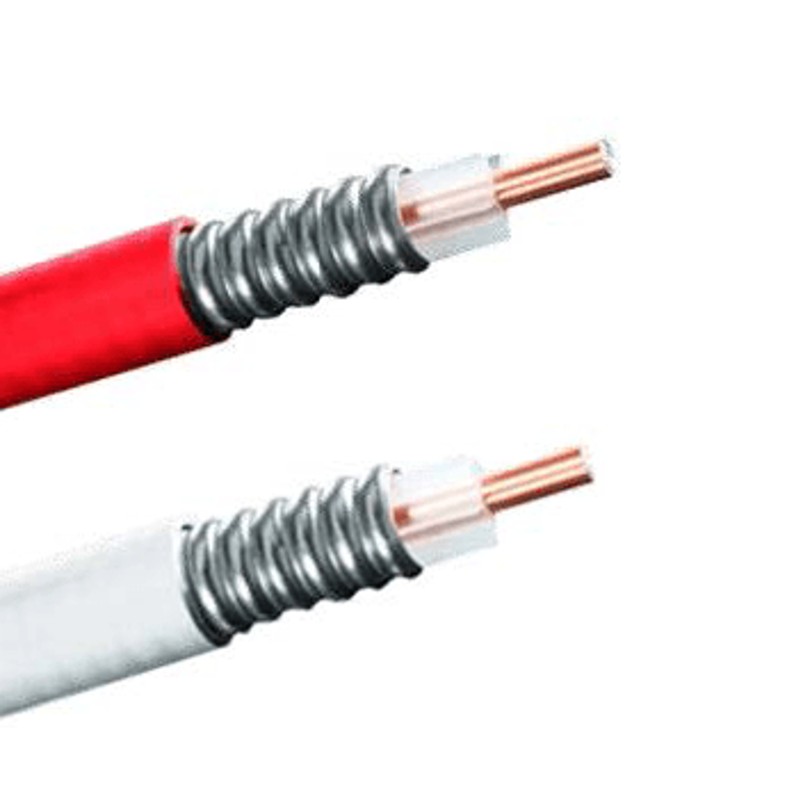

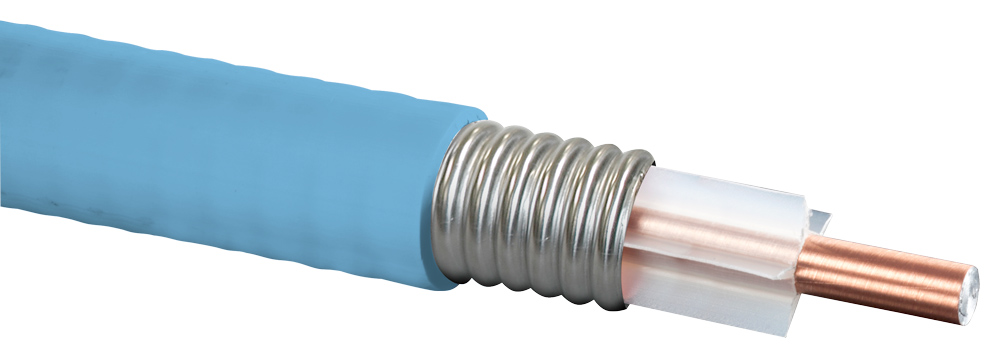

  • ClearFill®Line ICA12-50JPL
    ½″ air-dielectric, plenum-rated coaxial cable available in blue, white, or red jackets. Rated up to 6 GHz, 50 Ω impedance, low VSWR, and high power capability.
  • ICA12-50JPLW
    White-jacket version for aesthetic or identification purposes.
  • ICA12-50JPLR
    Red-jacket variant for public safety identification.



Please fill out the form for the model you are interested in, and we will contact you as soon as possible!
