FreeMile 60 from SAF Tehnika

FreeMile 60 is a modular 60 GHz wireless radio solution designed to support point-to-point and multipoint connectivity across a variety of network environments.

With flexible antenna configurations, beamforming technology, and support for high-capacity wireless links, FreeMile 60 provides options for connecting buildings, extending network access, and supporting applications where wireless connectivity is required.

Alliance Corporation works with SAF Tehnika to help organizations evaluate how FreeMile 60 fits their connectivity requirements, existing infrastructure, and deployment environments.

What Is FreeMile 60?

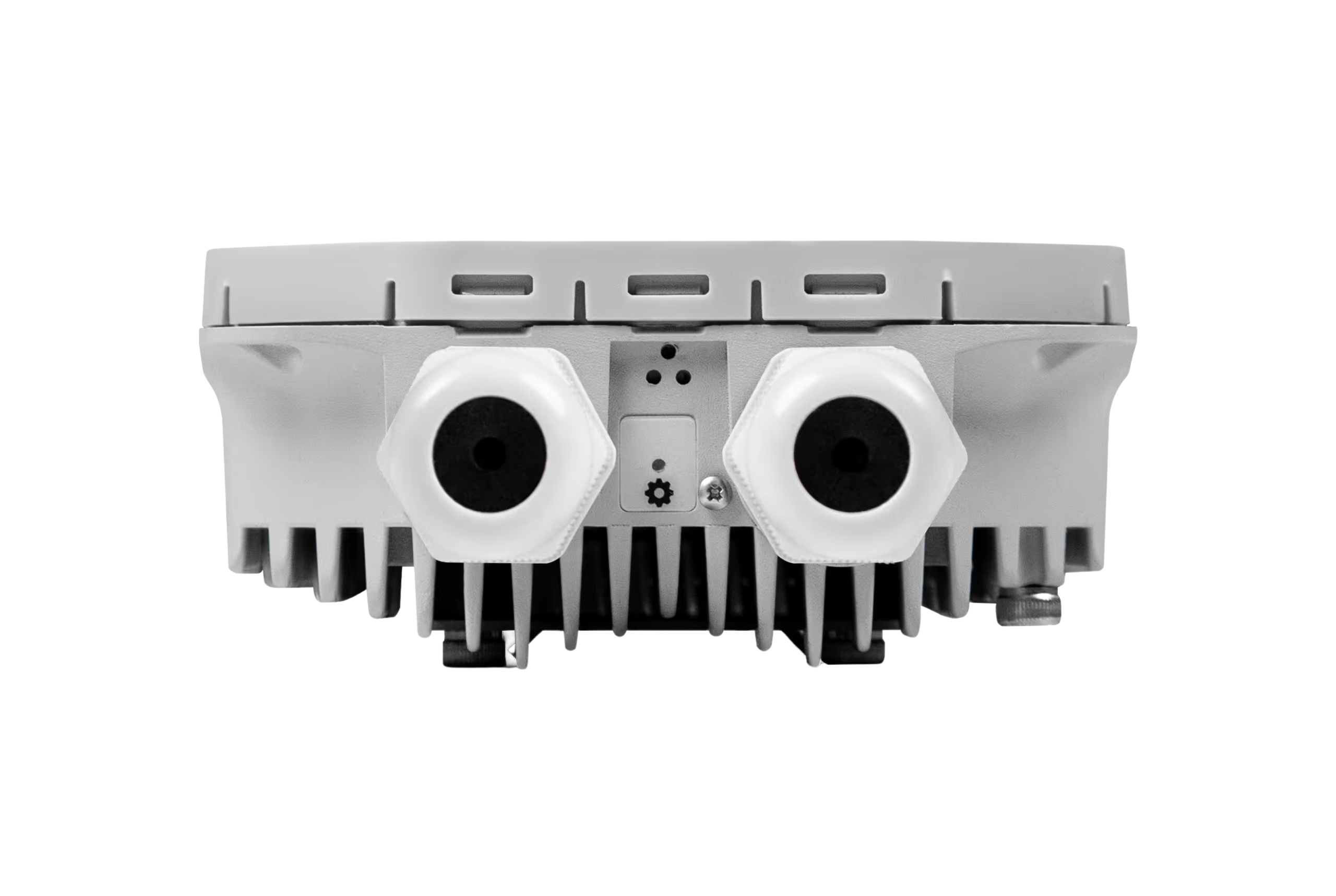

FreeMile 60 is a compact outdoor wireless radio operating in the 60 GHz frequency band. Its modular architecture supports point-to-point and multipoint deployments, allowing network operators to select configurations based on coverage, distance, and application requirements.

The solution supports up to 32 stations per access point and offers multiple antenna options for different deployment scenarios.

Common applications include:

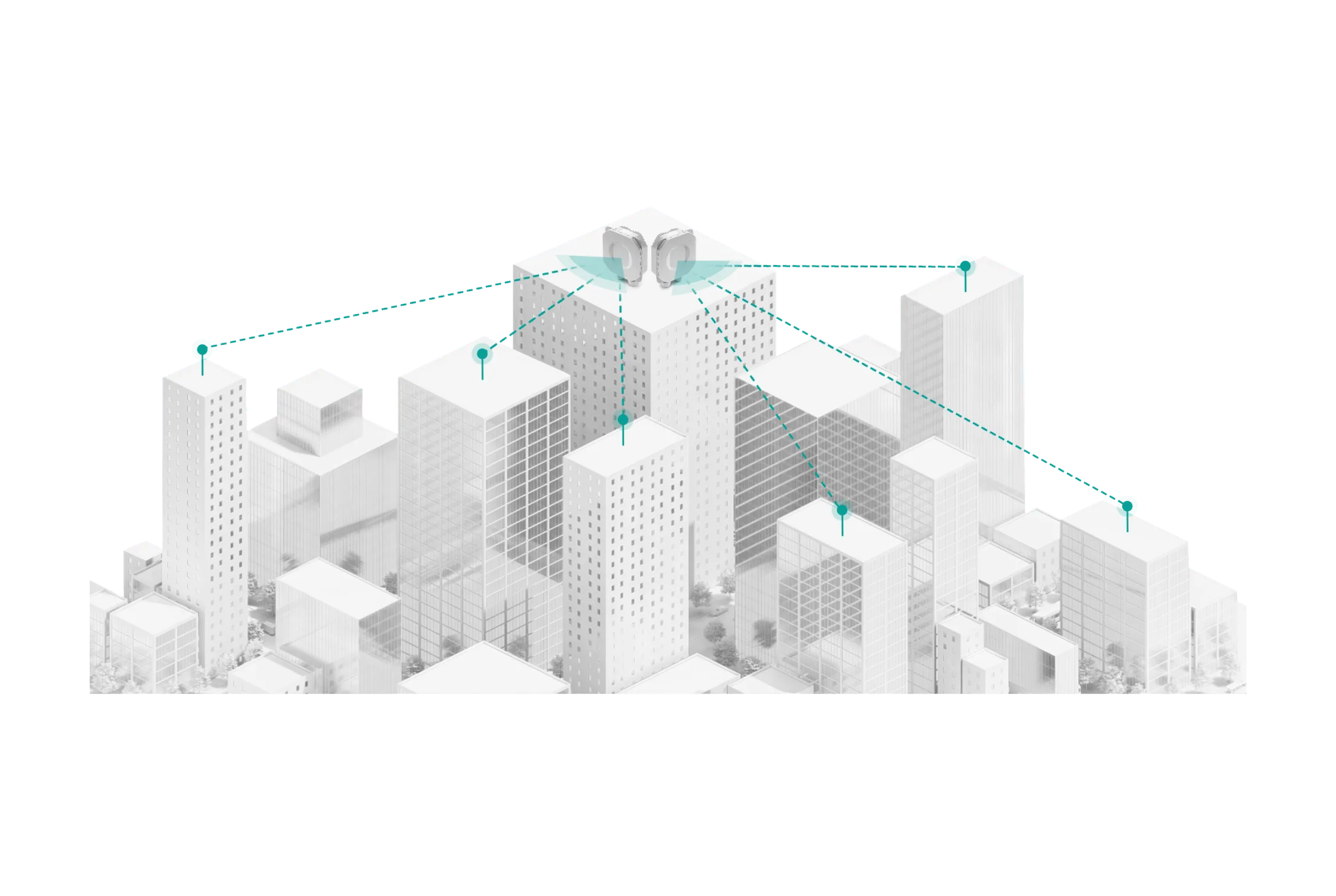

• Enterprise connectivity between offices, buildings, and campuses
• Urban internet access for businesses, residential areas, and public spaces
• Wireless connectivity supporting video surveillance systems
• Network access expansion for remote and underserved communities

Why Choose FreeMile 60?

FreeMile 60 combines high-capacity wireless connectivity with flexible deployment options for networks requiring connections between individual sites or multiple locations.

Its modular design allows network operators to select antenna configurations suited to different coverage and distance requirements, while integrated management capabilities support device monitoring and configuration.

Key benefits:

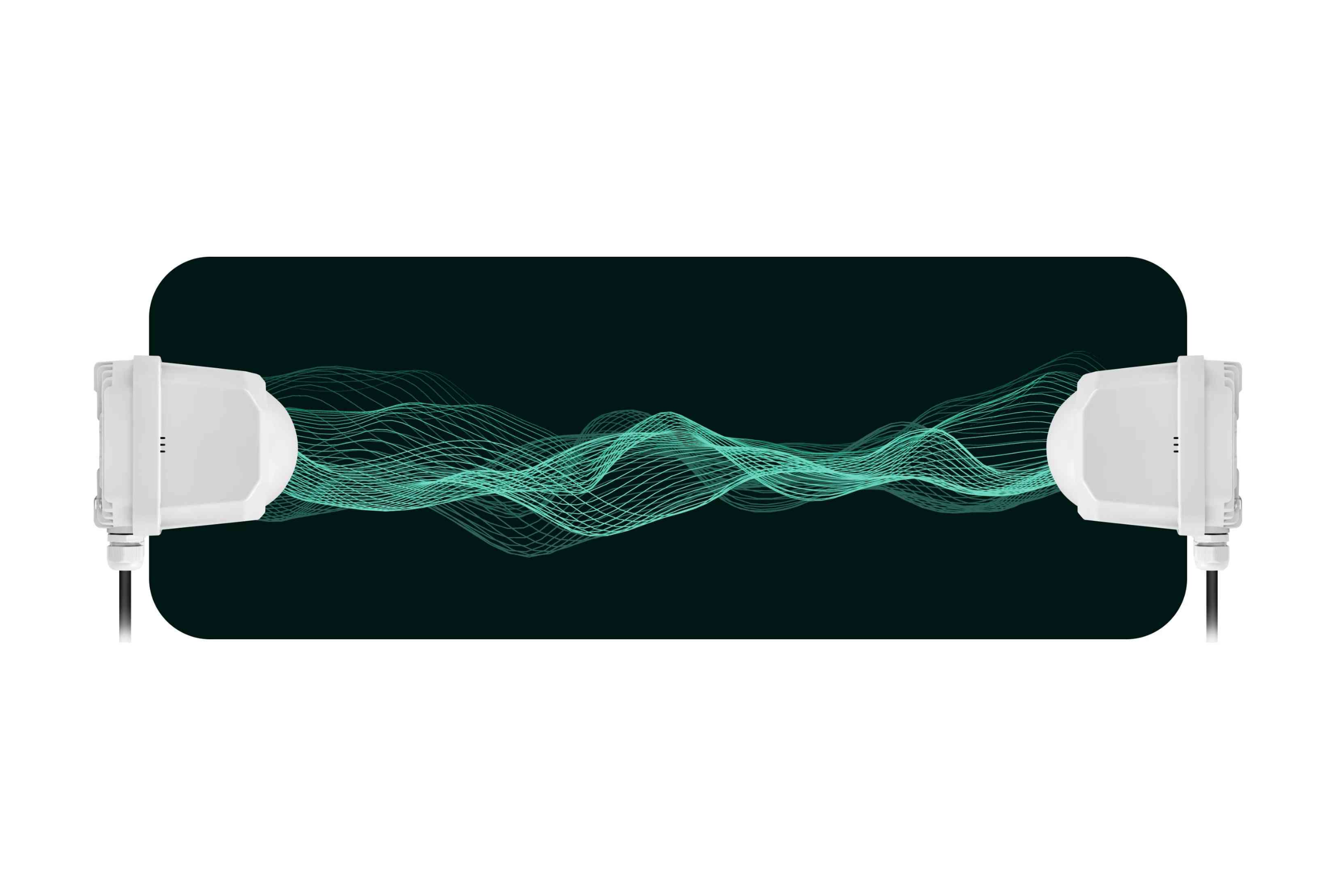

• 60 GHz wireless connectivity supporting point-to-point and multipoint deployments
• Ethernet throughput of up to 3 Gbps
• Point-to-point range of up to 6 km with the 300 mm antenna kit
• Support for up to 32 stations per access point
• Beamforming coverage with optional antenna configurations
• Web-based management, SNMP, and RESTful API support
• AES + GCMP data encryption

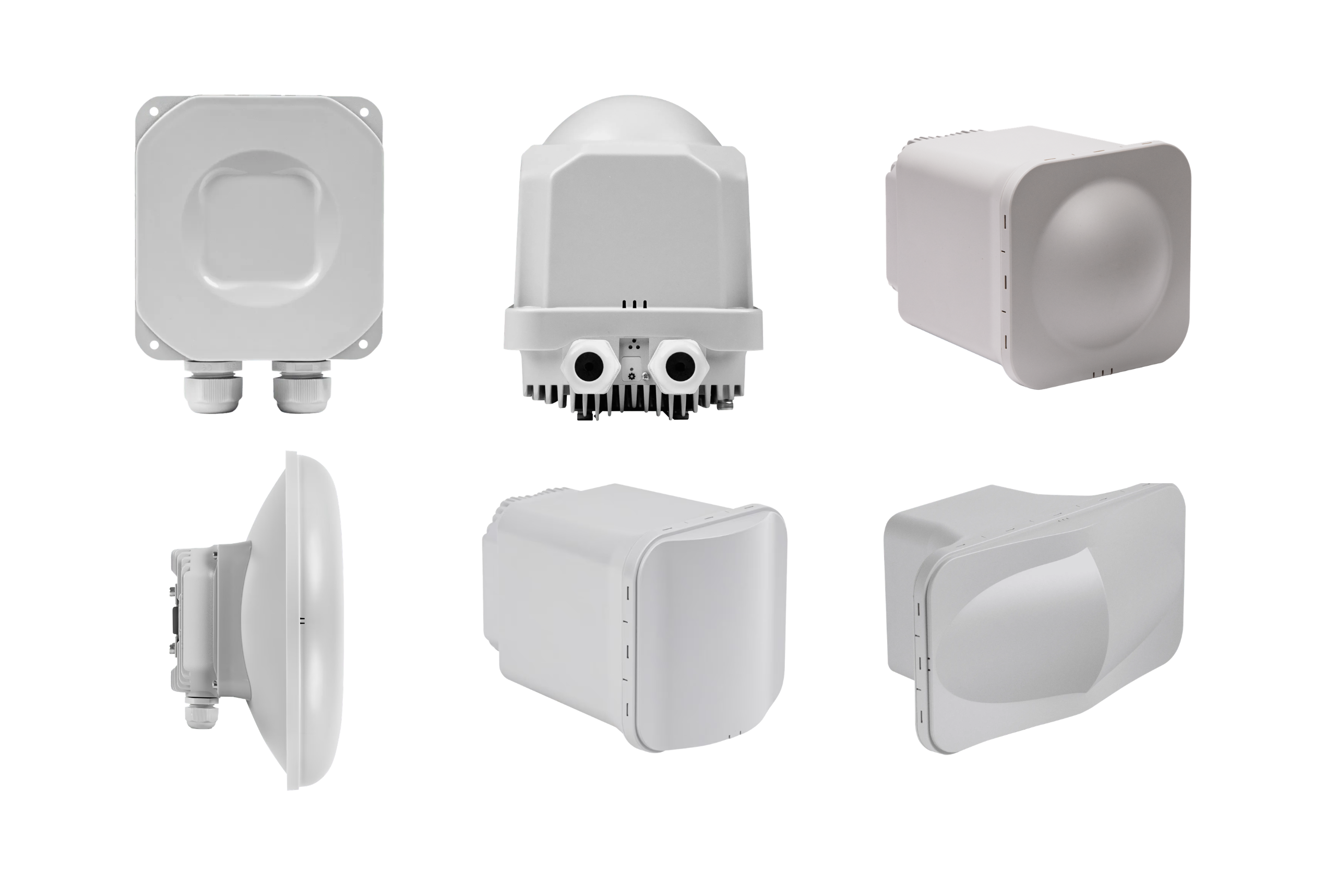

SAF Tehnika FreeMile 60 Models & Configurations

SAF Tehnika offers FreeMile 60 with multiple antenna configurations designed to address different wireless connectivity requirements.

Available configurations include:

• FreeMile 60: Compact 60 GHz radio supporting point-to-point and multipoint connectivity, with 90° beamforming coverage.
• FreeMile 60 + 100 mm Antenna Kit: Directional antenna configuration designed for extended-range wireless connections.
• FreeMile 60 + 150 mm Antenna Kit: Antenna configuration providing additional options for extended-range deployments.
• FreeMile 60 + 300 mm Antenna Kit: Directional antenna configuration supporting longer-distance point-to-point connections.
• FreeMile 60 + 45° Scanning Kit: Access point configuration providing 45° azimuth coverage for targeted multipoint deployments.
• FreeMile 60 + 90° Scanning Kit: Access point configuration providing 90° azimuth coverage for broader multipoint deployments.

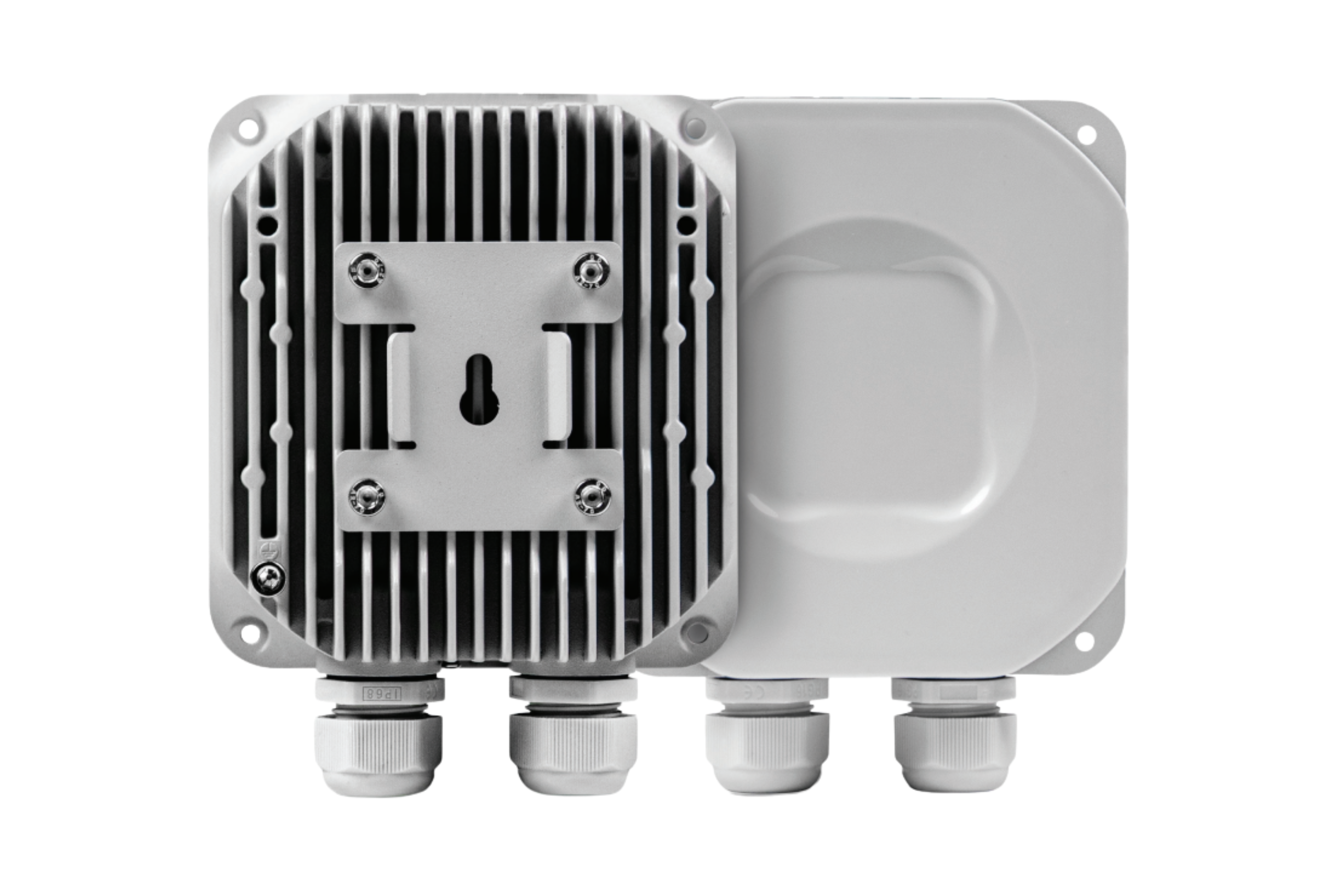

A dedicated mounting kit is also available to support radio installation.

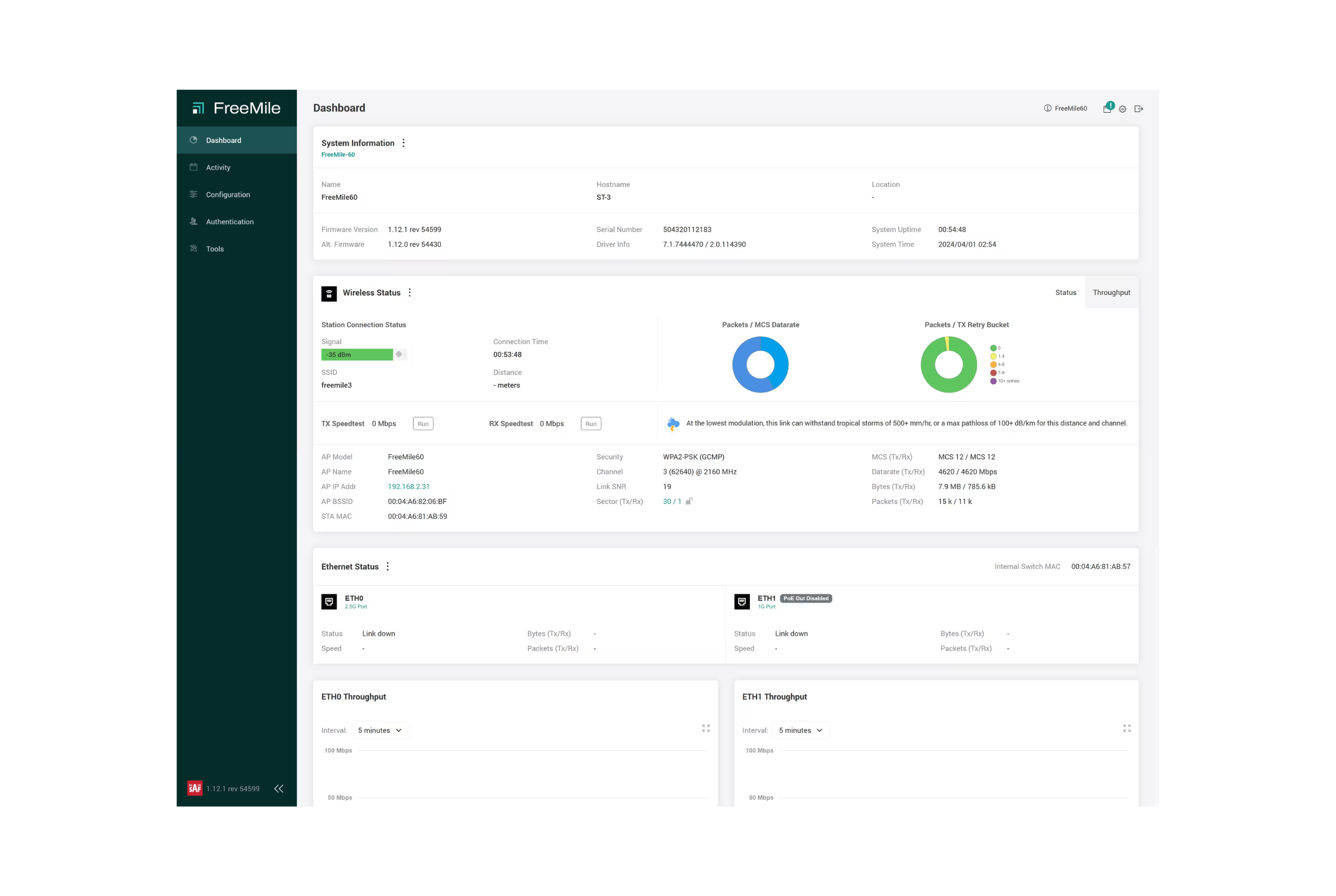

Network Management & Monitoring

FreeMile 60 includes management capabilities designed to support network configuration, monitoring, and maintenance.

The solution provides a web-based management interface, SNMPv2 and SNMPv3 support, and a RESTful API for accessing device statistics, modifying configurations, and performing firmware upgrades.

Management is available over IPv4 networks without requiring external management servers.

Not sure which FreeMile 60 configuration best fits your wireless connectivity requirements?

Alliance Corporation can help review your application, site locations, existing infrastructure, and coverage requirements to identify the SAF Tehnika options appropriate for your project.
