Ritron LoudMouth® Wireless Public Address (PA) System
Ritron

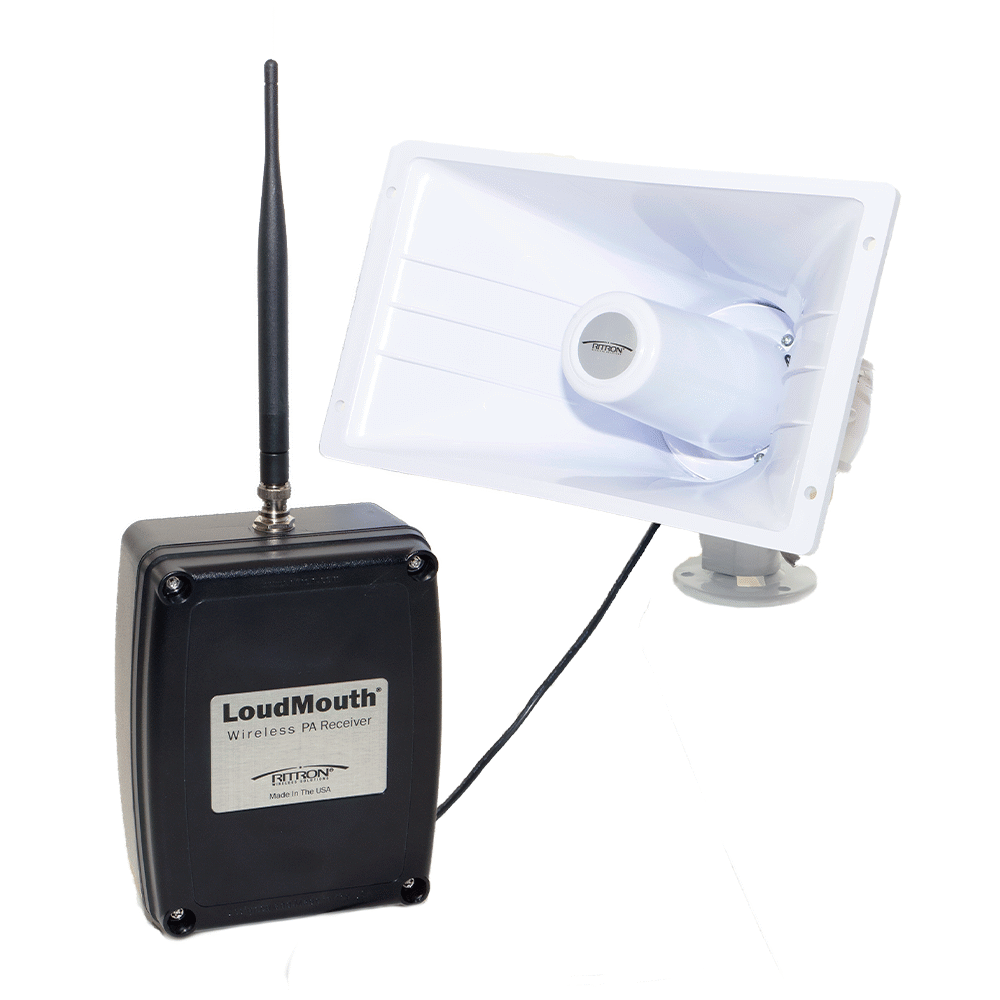

LM Series, LoudMouth® Wireless PA System

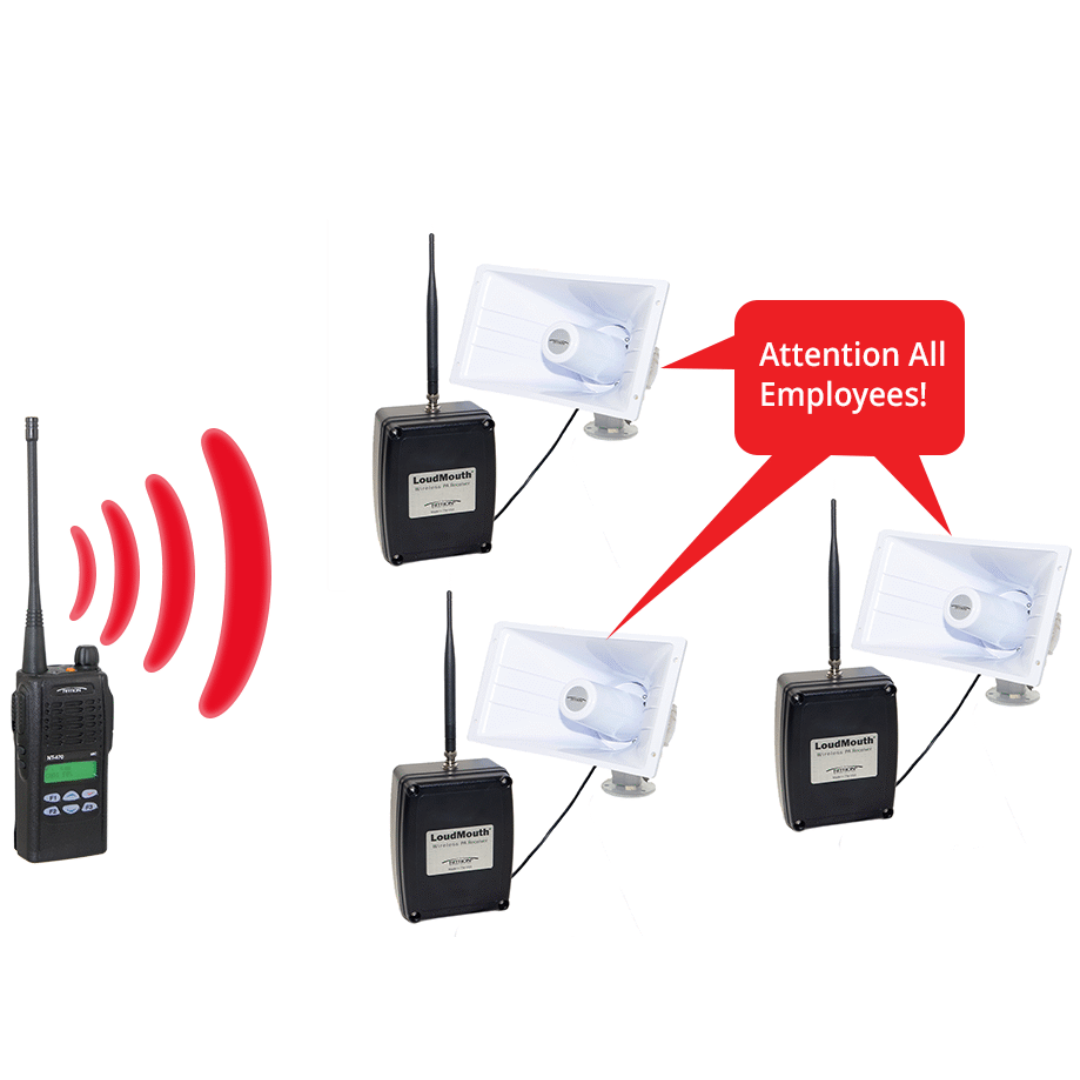

The LoudMouth wireless PA system is an ideal solution anywhere a hard-wired PA is either too expensive or is simply impossible to install.
Get your message to everyone . . . from plant-wide to small pinpoint areas using your business band radio system. It even works with radio repeaters for extended coverage. Optional strobe light provides visual alerting; Automatic Message Repeat function allows re-broadcast of message up to 4 times. Position independent wireless receiver / PA speakers anywhere you need them. A cost-effective replacement for broken or worn-out hard-wired PA systems. Wireless technology provides a cost-effective and flexible way to provide Public Address / Mass Notification coverage across your entire facility or to isolated pinpoint locations.
Models available:
1. LM-700DMR, DMR Digital, Tier-2 device VHF/UHF bands.
2. LM-600Analog VHF/VHF MURS/UHF bands
Top problem-solving benefits:
- Mobile – Users maintain mobility to deliver mass notification messaging on the fly using 2-way radio vs at a fixed location.
- Wireless – Eliminates the complexity of wired systems.
- Cost-Effective – Much cheaper than expanding or installing a new wired system.
- Long-Range – Your portable 2-way radio transmits to the LoudMouth system inside or outside the facility.
- Compatible – Leverages existing analog or digital radios to send message to receiver.
- Pinpoint Hard-to-Reach Areas – Where a wired system is impossible to install, place speakers and receivers anywhere you need them.
- Quick and Easy to Deploy – No complicated wiring diagrams or trenching.
- Immediate Communication – In the event of an emergency or urgent situation like weather, accidents, or intrusion.
Additional Features
- Rugged, Industrial-Grade VHF/UHF business band receiver. Compatible with other analog business band 2-way radios.
- Business Band Frequencies. Models include: VHF 150-165MHz (includes 5 MURS license-free business use only frequencies) or UHF, 450-470MHz.
- Built-in 8 Watt PA amplifier*.
- Indoor/outdoor rated PA loudspeaker with mounting bracket.
- LM receiver housed in a gasket-sealed enclosure measures 7″ H x 5″ W x 3″ D, 2 lbs.
- Includes wall mounting bracket. Optional LMH-100 enclosure for outdoors or harsh environments.
- Field Programmable Privacy Codes (digital and analog). Choose from 153 possible codes for added PA security access.
- Field Programmable “Paging Codes” Select 1 of 9 different “paging codes” for added PA security access.
- Volume Settings allows “best-fit” for a variety of applications.
- “LIVE” PA mode or Record-And-Play mode, configurable. Note: Record-and-Play operation is recommended for use of maximum number of product features.
- Automatic Message Repeat* Feature – Repeats message from 1 to 4 times consecutively when LM recevier in Record-And-Play mode.
- Visual Alert Option – Built-in relay allows use of an optional strobe light – provides advance visual indication of an incoming PA message.
- “Custom” Configuration via PC Programming – Can also be PC programmed using special Ritron programming software to “custom” frequencies or even radio repeaters.
- Loud Audio Output – PA horn speaker delivers up to 85dB of audio output @ 50 feet to get your message out loud and clear.
- LM Receiver Supports Up To 2 PA Speakers – With optional “Y” adapter (#RYCONN) and 1 additional PA speaker (#05500040), LM receiver can provide multi-direction PA coverage.
- Multi-Zone Paging Capability – Multiple paging zones can be configured using 2-tone codes. Allows properly configured 2-way radios to access more than one PA speaker/zone.
- Operating Temperature: -22º F to +140º F
- Receiver sensitivity – 12dB SINAD @ .20µV
- Frequency Response: 300 to 3000 Hz de-emphasized
- Signaling Capability – CTCSS and DCS decode, 2-Tone Decode
- Optional Back-up Battery – #BP-LM-Li22
- Designed and Made in the USA
- *Receiver is indoor-rated only. Install in non-corrosive environments, away from the elements. See optional LMH-100 weatherproof housing for outdoor or other potentially corrosive environments.

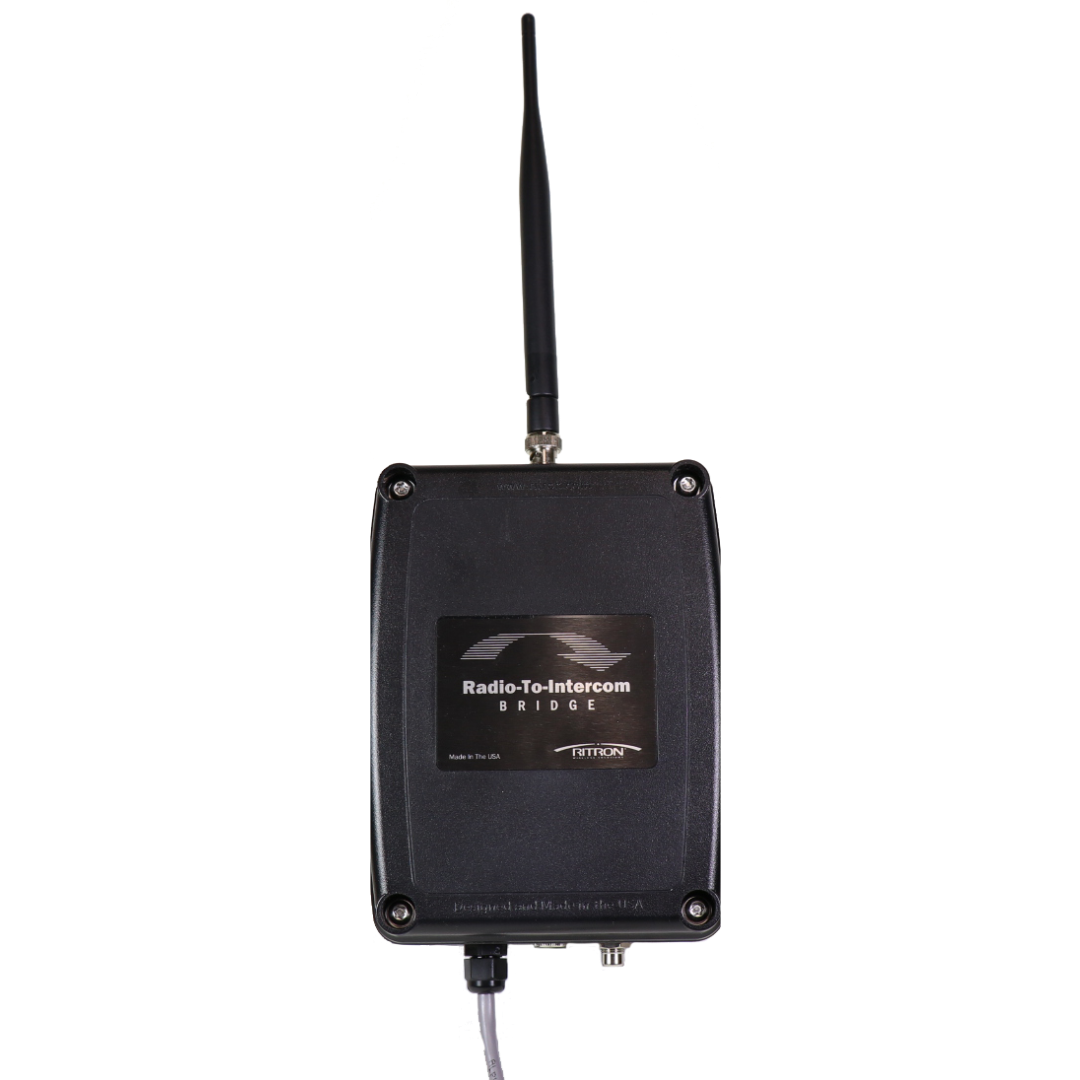

Radio-To-Intercom Bridge™
The Radio-To-Intercom Bridge receiver is designed to interface to an existing wired Public Address Intercom system and allow PA or intercom announcements using your Analog or DMR Digital two-way radio. Each model can operate on VHF LMR business band, UHF LMR business band, or VHF MURS 2-way radios, and can work through radio repeaters.
- Leverage your existing intercom system and radio network.
- Add a layer of security.
Wireless technology provides a cost-effective and flexible way to provide Public Address / Mass Notification coverage across your entire facility or to isolated pinpoint locations.
Models include:
RIB-600Analog VHF/VHF MURS/UHF bands
RIB-700DMR, DMR digital, Tier-2 device VHF/UHF bands.
Additional Features:
- The Radio-To-Intercom Bridge is designed to be connected to an existing PA/intercom system with its own PA amplifier and wired speakers.
- The Radio-To-Intercom Bridge does not include a back-up battery since it is merely a component of a larger system usually powered by AC and its own battery back-up system.
- Available in Analog and DMR Digital VHF (150-162 MHz) and UHF (450-470MHz) frequency bands. Provides compatibility with business band 2-way radios, License-FREE VHF business band radios (MURS), Family Radio Service and GMRS radios.
- Provides interconnection to the Public Address amplifier through a high impedance, unbalanced AUX input OR a 600Ω, balanced MIC input. Allows personnel to remain mobile while providing access via 2-way radios to existing PA speakers located throughout the facility.
- “Record and Play” allows use of radios in close proximity to PA speakers without feedback. The Radio-To-Intercom Bridge records/buffers received messages up to 24 seconds in length, then plays them over the PA immediately after releasing the PTT button on the radio.
- Easy “Plug and Play” installation.
- Programmable volume control adjusts audio output level 5-99%. Allows custom adjustment for most applications.
- Selective Decode Signaling Analog: 2-Tone, DTMF, Selcall (Group / All Call).
- Selective Decode Signaling DMR Digital: Individual Unit ID / Group Call / All Call to provide an added layer of access control to the PA system.
- Pre-announce tone (similar to existing PA systems) with programmable on/off and volume level.
- NOAA Weather Alert (VHF only).
- Field or PC programmable to frequencies within the respective band (i.e. VHF 150-165 MHz, UHF 450-470 MHz).
- The Radio-To-Intercom Bridge is for indoor use only.
- Designed and Made in the USA.
Please fill out the form for the model you are interested in, and we will contact you as soon as possible!
