ICT 1000-watt hot-swappable DC power module is designed to provide high performance, reliability, and redundancy for ICT 48-volt DC power systems. The high efficiency module is compatible with the ICT Modular Power Series, MPS Ultra, Hybrid Power Series and Hybrid Ultra which offer remote Ethernet-based communications for monitoring and control; enhanced security and reliability features including SNMPv1/v2c/v3 and TLS 1.3; fan fail detect alarms; and advanced battery management features for sealed lead acid and lithium-ion batteries.

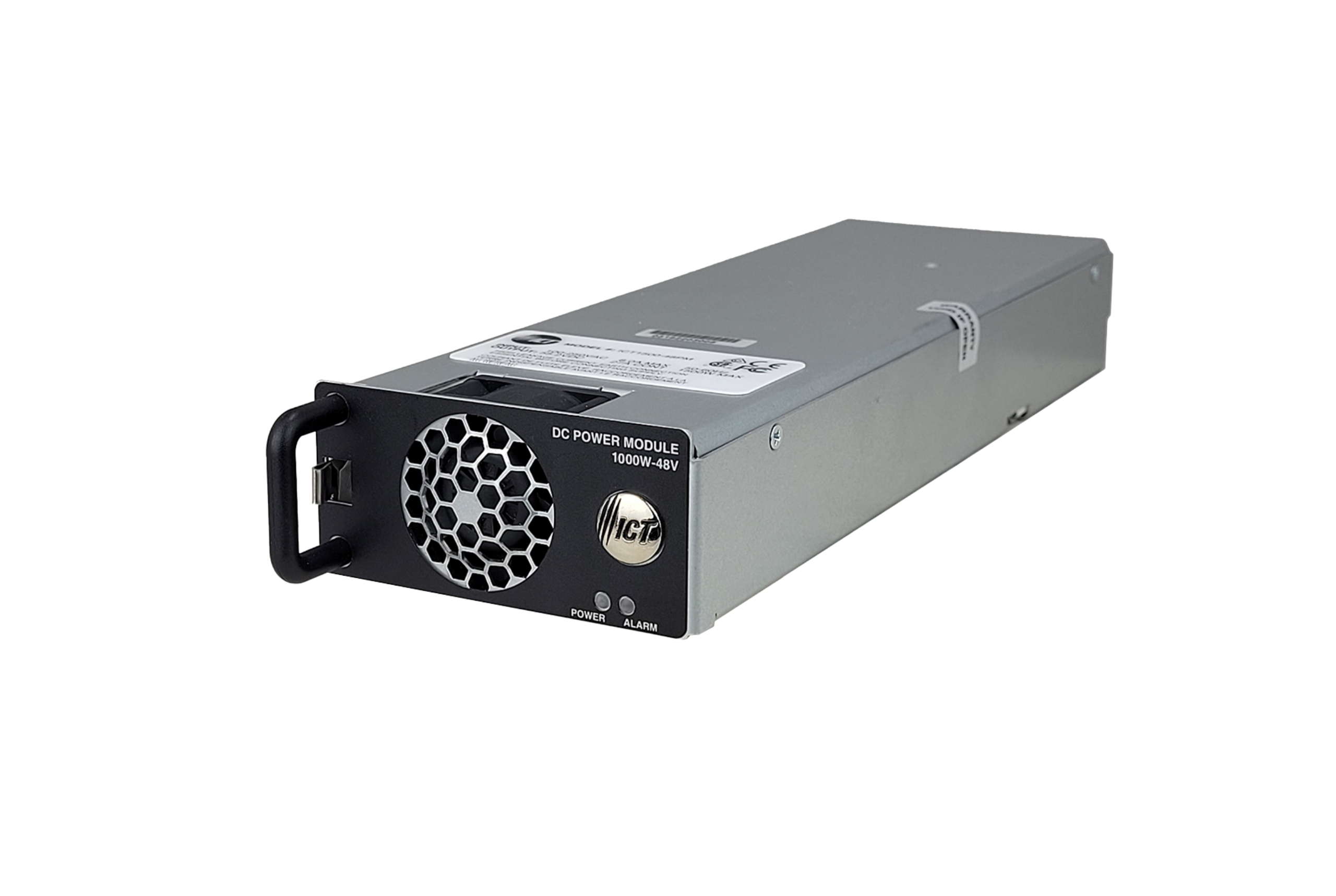

ICT 1000-Watt DC Power Module
For ICT Modular Power Series, MPS Ultra, Hybrid Power Series and Hybrid Ultra DC Power Systems
Applications
- Fixed Wireless Access
- Land Mobile Radio
- FTTP/H PON GPON
- Distributed antenna systems (DAS)
- Traffic Management
- Industrial DC power
Electrical
AC Input
- Nominal Input Voltage: 120/240VAC
- Input Voltage Range: 100-300VAC (no derating)
- AC Input Current (per Module) at 110VAC nom.: 11A max
- Power Factor (typical): 0.99
- Frequency: 50/60Hz
Power Modules
ICT1000-48PM
- Output Voltage: +/- 55.2 VDC
- Output Voltage Range (adjustable): 46.0 – 60.0 VDC
- Power output per Module: 1000W
- Maximum Output Current: 18A
- Efficiency (peak): 91%
- Output ripple (rms):< 60mV
- Line regulation: +/- 0.1%
- Load regulation: 1.20% max
Mechanical
- Weight (lbs/kg) : 3.3lbs / 1.49 kg
- Dimensions – H x W x L: 1.73 x 3.66 x 11.34 in., 44 x 93 x 288 mm
Environmental
- Operating Temperature Range: -30° to +60° C
- Output Derating: 2% /° C (above 50° C)
- Storage Temperature: -45° to +85° C
Regulatory
Safety:
- EN 62368-1 (CSA Pending)
Emissions (48/24V only)
- FCC Part 15/B
- EN61000-6-1
- EN61000-6-3
- EN61000-3-2
- EN55032
- (CE Pending)
Environmental
- RoHS
