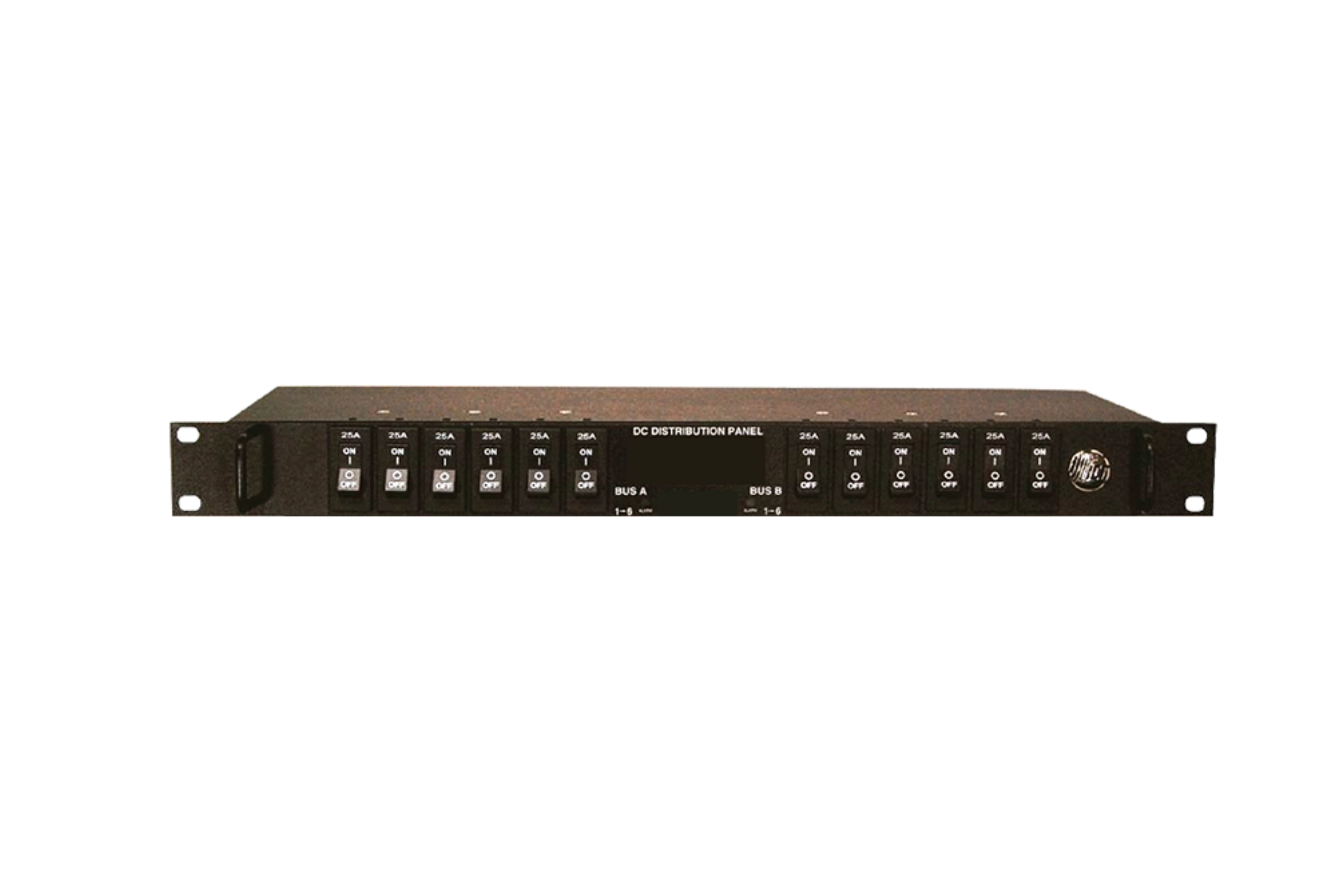

Features

• Supports +12, +24, and +/-48 volts DC applications
• 200-amp peak system current / 180 amps continuous
• Dual-bus architecture (Bus A & Bus B)
• Configurable for dual bus or single bus operation
• Total of 12 breaker output positions rated up to 25 amps per output
• 6 outputs per bus
• Front-mounted breakers
• Heavy duty input stud connectors
• Form C alarm contacts
• 1RU 19-inch rackmount form factor
• Two-year warranty

Benefits

• Support mixed-voltage sites with dual-bus architecture

Electrical

Power Specifications: ICT200DB-12

• Application Voltage (pos or neg gnd): 12, 24, 48VDC
• System Current Rating (peak/cont): 200A/160A
• Bus current Rating (peak/cont): 100A/80A
• Number of Outputs per bus: 6
• Operating Voltage Range: 10-60VDC
• Number of Breaker Outputs: 12
• Max Breaker Rating (12, 24V): 30A
• Max Breaker Rating (48V): 30A

Mechanical

• Form Factor: 1RU – 19 inch rack mount with handles
• Dimensions (L x W x H): 9.29 x 19.0 x 1.72 Inches
• Weight:7.0 lbs / 3.2 kg
• Connectors: M8 DC Input stud connectors, 10-22AWG cage clamp output terminal blocks

Environmental

• Operating Temperature Range: -30°C to +60°C

Regulatory

• ROHS, CE
