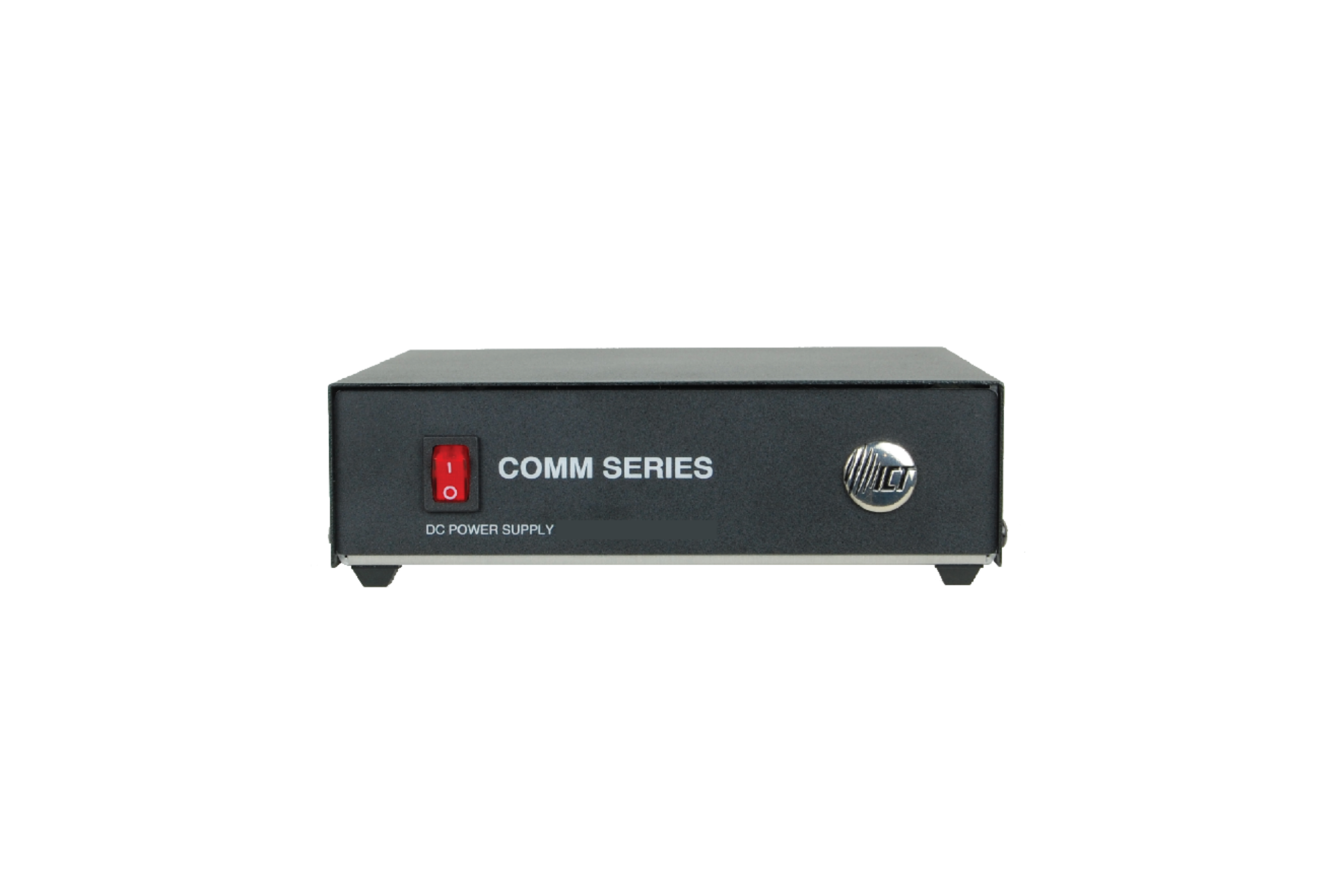

ICT Comm Series
High Reliability Desktop Power Supplies
The next generation ICT Comm Series desktop power supplies are designed and manufactured in North America for high quality, reliability, and assured delivery. Available in two power levels supporting 12- or 24-volt DC outputs, the Comm Series is ideal for providing power to mobile radios and other communication devices. A 20-amp, 12-volt output model with integrated battery backup charging is also available. Radio covers are available to support most radio brands and models, and when combined with the Comm Series, offer an elegant, integrated radio base station solution.
Features
- 12- or 24-volts DC output
- 12-, 20- or 30-amp models (12 volt)
- 10- and 15-amp models (24 volt)
- 20-amp battery backup model with independent battery charging terminals
- Designed and manufactured in North America
- Support for broad range of land mobile radio covers
- Rack mount option available
- Two-year warranty
Benefits
- Provides reliable DC power for mobile radios for desktop radio dispatch applications
- The ICT12-20B model incorporates separate battery charging terminals for uninterrupted DC power during AC mains failure
Mechanical
- Dimensions (L x W x H): 8.0 x 7.1 x 2.2 inches,203 x 180 x 56 mm
- Weight: 2.7 lbs / 1.23 kg
- AC Input Connectors: IEC 60320 with NEMA5-15P to C13 (Detachable 6 ft. / 1.8 m chord included)
- DC Output Connectors: Terminal Block, M4.0
Environmental
- Operating Temperature Range: -20°C to +60°C (derate output load by 2% per degree C above 35°C to max. 60°C)
Regulatory
- Safety: CSA/UL 60950
- EMI: FCC Part 15, Class B
- ROHS
