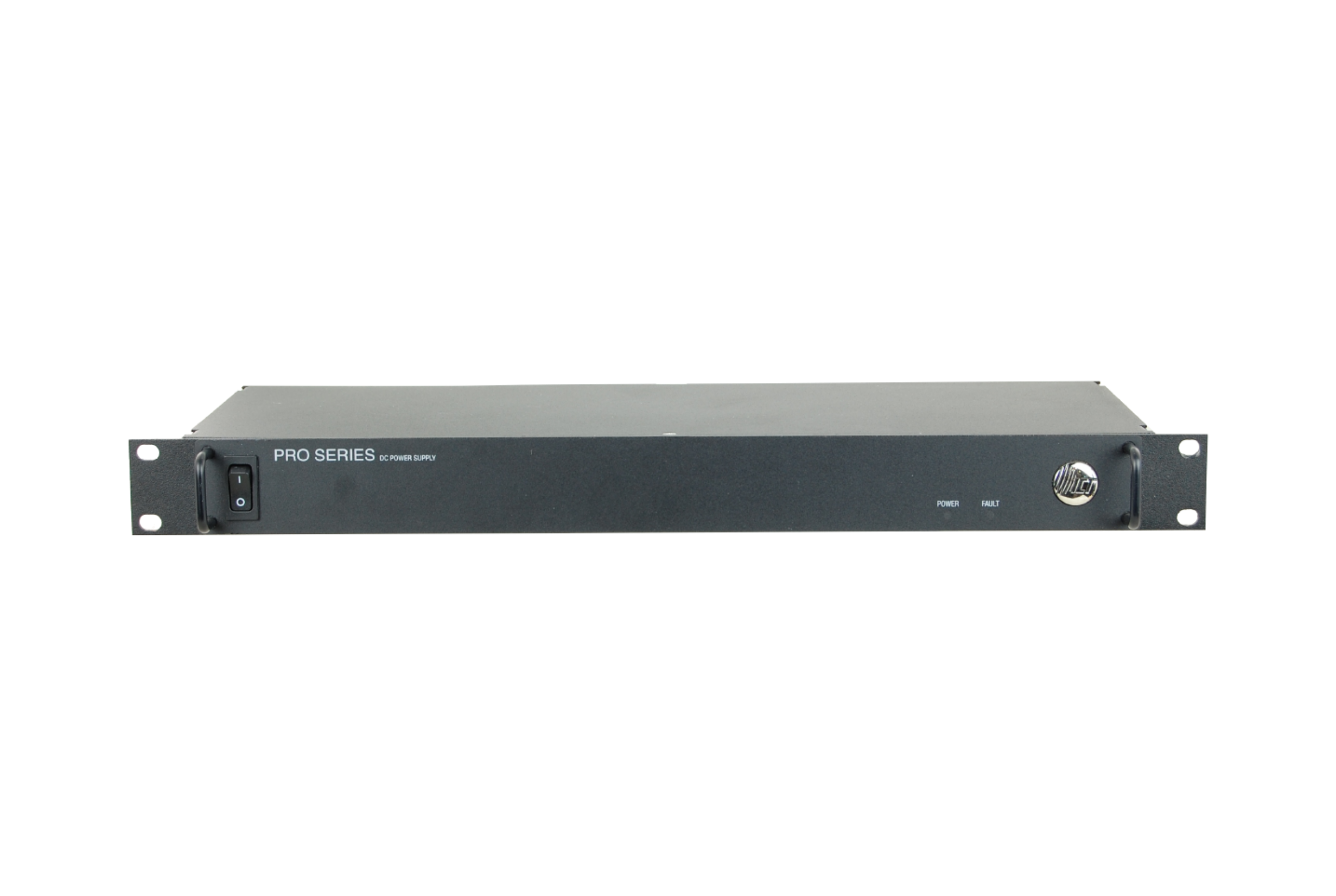

ICT Pro Series

1RU High Efficiency DC Power Supply

The Pro Series from ICT is a cost effective, high-performance DC power supply with a power factor corrected AC input, space-saving 1RU form factor, and optional battery backup terminal with integrated low voltage disconnect. Available in two different power levels supporting 48-, 24- or 12-volt outputs, the Pro Series provides an ideal DC power solution for wireless communications professionals who demand a cost effective, high efficiency space-saving DC power supply for land mobile radio and broadband, networks, providing critical power to communications equipment.

Features

690 or 1190 watts of output power
12-, 24- or +/- 48-volt DC output
Battery backup with low voltage disconnect and adjustable charge current limit
Universal power factor corrected input
100 – 265 VAC input voltage range
Space-saving 1RU form factor
Form-C alarm contacts
Two-year warranty

Benefits

Cost-effective DC power supply
Standard integrated low voltage disconnect protects batteries from over-discharge

Electrical

Continuous Output Current – 12V: 87A, 50A
Continuous Output Current – 24V: 44A, 25A
Continuous Output Current – 48V: 22A, 12.5A
Efficiency (typical) – 12V: 90% @240VAC
Efficiency (typical) – 24V: 91% @240VAC
Efficiency (typical) – 48V: 93% @240VAC
Output Voltage Range – 12V: 13.8VDC
Output Voltage Range – 24V: 27.6VDC
Output Voltage Range – 48V: 55.2VDC
Input Voltage Range: 100-265VAC
Frequency Range: 50/60Hz
Power Factor (typical): 0.99
Output Voltage Range – 12V: 30mV RMS
Output Voltage Range – 24V: 30mV RMS
Output Voltage Range – 48V: 60mV RMS
Line Regulation: 0.1%
Load Regulation: 0.5%
Output Grounding: Positive, negative or floating

Mechanical

Form Factor: 1RU – 19 inch rack mountable
Dimensions (L x W x H): 6.4 x 19.0 x 1.72 inches, 163 x 483 x 44 mm
Weight: 7.4 lbs / 3.36 kg
AC Input Connectors: IEC C14 Connector
DC Output Connectors: Busbars with 5/16″ mounting holes
Remote Alarm Connectors: Terminal Block (#22 to #26 AWG)

Environmental

Operating Temperature Range: -30°C to +60°C

Regulatory

Designed to UL/CSA 60950, FCC Class B, CE EMC Directive

Protection Features

Over-Temperature, DC Over-Current, AC Input Voltage, DC Output Voltage, System Fault

Battery Management

Factory-installed third terminal output for float charging batteries. Provides automatic revert function. Includes low voltage disconnect with factory default disconnect and reconnect voltage setpoints.
