Features

• Supports +12, +24, and +/-48 volts DC applications
• 240-amp peak system current / 200 amps continuous
• Dual-bus architecture (Bus A & Bus B)
• Configurable for dual bus or single bus operation
• 8 breaker output positions rated up to 25 amps per output
• 4 outputs per bus

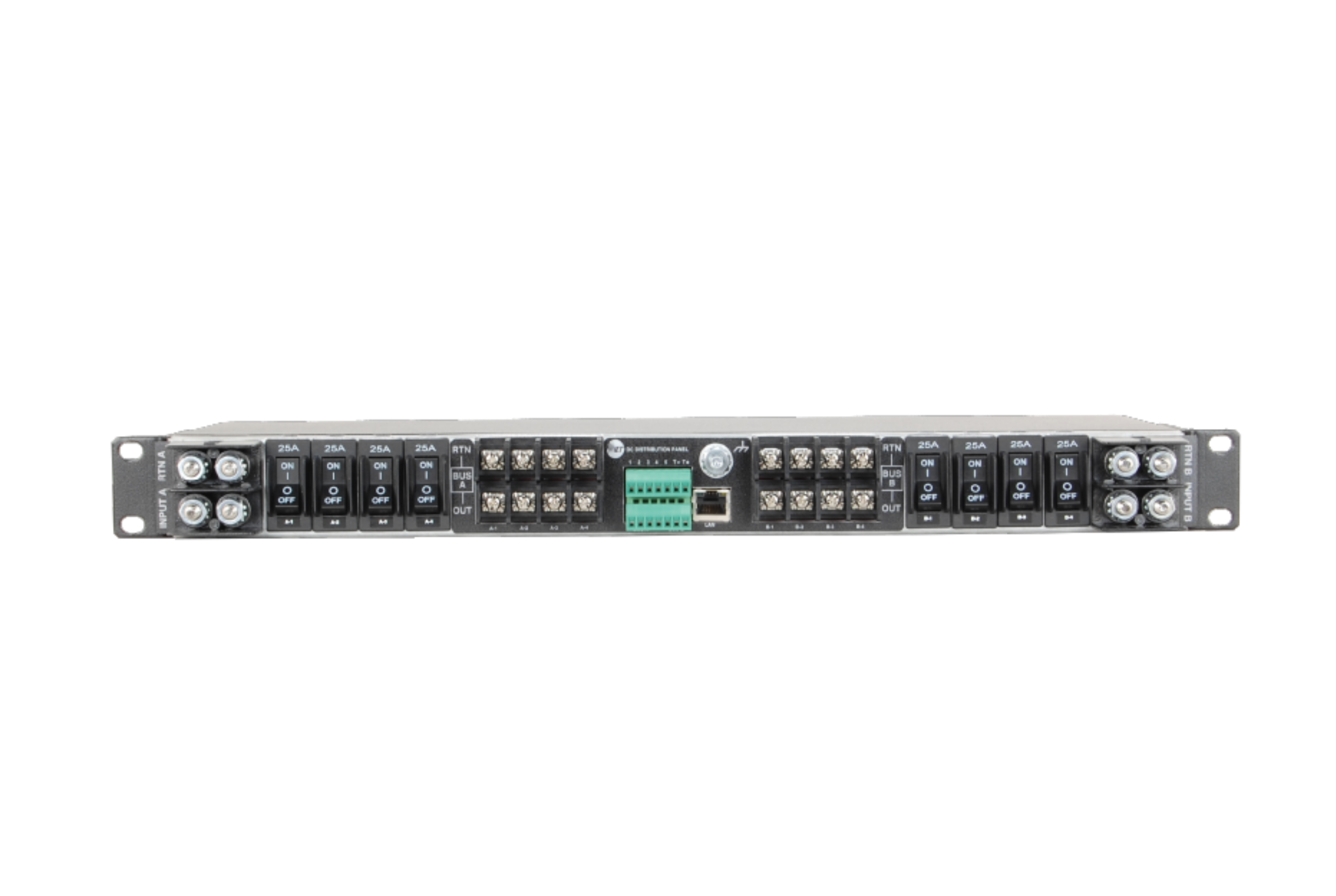

• Front-mounted breakers
• Standard TCP/IP Ethernet communications provides full remote monitoring and control capabilities
• Network security protocols include HTTPS, TLS 1.0, SNMP v1/v2c/v3
• Reporting of total system current (Bus A & Bus B), individual load current, Bus A and Bus B system voltage, and fuse or breaker status
• Alarm reporting via text or email notification
• Remote individual output power toggling
• Automatic load shedding disconnects non-critical loads when on battery power (user defined)
• Network watchdog automatically reboots routers or switches when no response is received
• Four digital site monitoring input contacts
• Up to 30 days of data logging
• Heavy duty input stud connectors on front panel
• All connection points on front panel
• Form C alarm contacts
• 1RU 19-inch rackmount form factor
• Two-year warranty

Benefits

• Full remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs
• Improve the quality of service and uptime of your network by quickly resolving power issues remotely
• Increase battery backup time with automatic load shedding by allowing non-critical loads to be removed from the system, maintaining critical loads for longer
• No additional software required as monitoring and control is provided via an onboard web-based server
• Support mixed-voltage sites with dual-bus architecture
• Front access to all input and output connections allows for easy access when installed in front-access cabinets

Electrical

• Operating Voltage Range (pos or neg ground): 10-60VDC
• System Current Rating (peak/cont): 240A / 200A
• A/B bus Current Rating (peak/cont): 120A / 100A
• Number of Outputs per Bus: 4
• Max. Breaker Size (12, 24, 48V): 30A
• Output Rating, Continuous (12, 24, 48V): 25A

Mechanical

• Form Factor: 1RU – 19 inch rack mount with handles
• Dimensions (L x W x H): 6.4 x 19.0 x 1.7 inches / 163 x 483 x 44 mm
• Weight:4.6 lbs / 2.1 kg
• Connectors: Dual 1/4″ – 20 input studs with 0.625″ spacing, 30 Amp terminal blocks

Environmental

• Operating Temperature Range: -30°C to +60°C
• Cooling: Temperature Controlled Fan

Regulatory

• ROHS, CE

Applications:

• LTE/Small Cell
• Radio Access Networks
• DAS
• Fixed Wireless Broadband
• RF Wireless Systems
