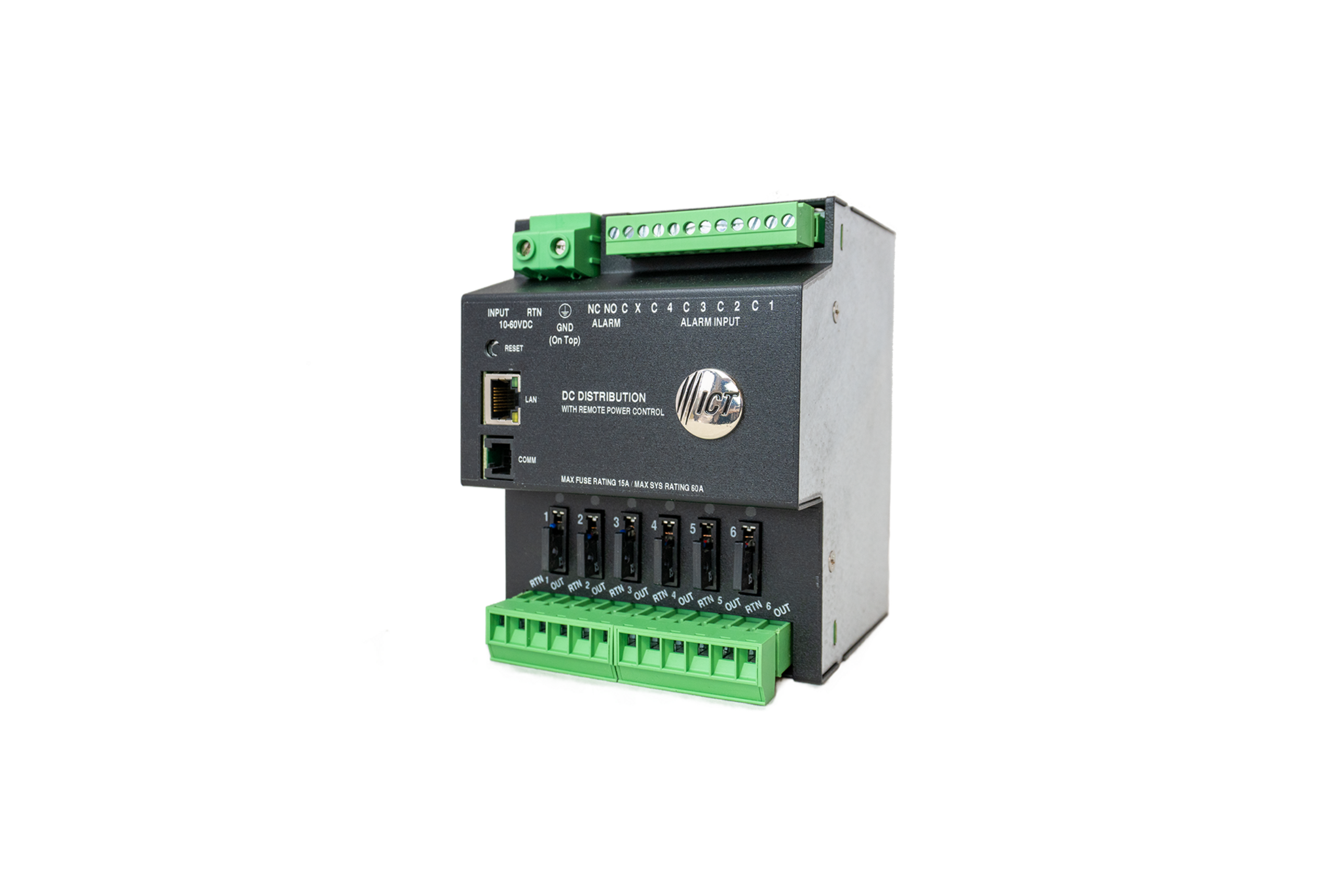

ICT ICT-DIN-PDU6

Intelligent DIN Power Distribution Unit

The DIN Series Power Distribution Unit from ICT is a DIN-rail mount, single-bus DC distribution module designed to be used in 12-, 24- or 48-volt DC applications. It includes a secure, easy-to-use web-browser interface, which provides remote power monitoring, power control, and alarm reporting over an Ethernet link, along with SNMP support for integration into your network management system. Combined with the ICT DIN 360-watt power supply, remote monitoring and control of battery current and voltage, low voltage disconnect setpoints, and battery charge current settings are available through the ethernet controller and user interface. The ICT DIN Series is designed, manufactured and supported in North America to meet the need for wireless communications, broadband and other demanding DC power applications.

Features

3Supports +12, +24, and +/-48 volts DC applications
60-amp continuous system current
Six fused output positions rated up to 12 amps
Supports GMT fuses rated to 15 amps max.
Front-mounted fuses with LED indicators when fuse is blown
TCP/IP Ethernet communications provides full remote monitoring and control capabilities
Network security protocols include HTTPS, TLS 1.3, SNMP v1/v2c/v3 (see data sheet for details)
Reporting of total system current, individual load current, system voltage, fuse status
Alarm reporting via text or email notification • Remote individual output power toggling
Automatic load shedding disconnects non-critical loads when on battery power (user defined)
Network watchdog automatically reboots routers or switches when no response is received
Four digital site monitoring input contacts
Up to 30 days of data logging
Form C alarm contacts
DIN-rail mount form factor
Two-year warranty

Benefits

Full remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs
Improve the quality of service and uptime of your network by quickly resolving power issues remotely
Increase battery backup time with automatic load shedding by allowing non-critical loads to be removed from the system, maintaining critical loads for longer
No additional software required as monitoring and control is provided via an onboard web-based server
Front-mounted fuses allow for quick and easy replacement

Electrical

Power Specifications: ICT-DIN-PDU6
Nominal Application Voltage: 12,24 and 48VDC
Operation Voltage Range: 10 to 60VDC
Bus Current Rating (Continuous): 60A
Output Current Rating: 12A
Number of GMT Fused DC Outputs: 6
GMT Fuse Rating (Max):15A

Mechanical

Form Factor:TS35 (EN50022) standard DIN rail mount
Dimensions (L x W x H): 4.4 x 5.3 x 5.7 in / 111 x 134 x 144 mm
Weight: 2.7 lbs / 1.22 kg
Site Monitoring Inputs: Four voltage-free digital inputs

Environmental

Operating Temperature Range: -20°C to +60°C
Cooling: Convection

Regulatory

RoHS, CE

Communications

Ethernet: TCP/IP built-in web server and graphical user interface; 10/100 BASE-T; IEEE 802.3 compatible
Supported Protocols: IPv4, HTTP, HTTPS, SMTP, DNS, TCP, UDP, ICMP, DHCP, ARP, SNMP v1/v2c/v3
SNMP Ports: UDP Port 161, SNMP Traps: UDP Port 162
Firmware Upgrades: Upgradable over Ethernet
Security: Password protected, HTTPS, TLS 1.2
Channel Output Monitoring: Current draw measured and reported for each output, definable under and over current alarms
Email and SMS Alerts: Multiple email and text accounts with adjustable intervals
Data Logging: Up to 30 days at one-minute sampling rate; CSV file download; major event logging
Network Watchdog: Autonomously ping up to six I.P addresses and power-cycle output if no response, definable settings
Remote Alarms: Form C alarm Contacts (C/NO/NC)
Remote Power Control: Each DC Output on/off selectable
Auto Restore Mode: Will return to previous output settings after a power loss
Power-up Delay Sequencing: User selectable 0 to 60 seconds delay between outputs
Auto Load Shedding: Each output user definable, manual or auto restart
