Features & Benefits

• 2RU, 19 inch design
• Convection cooled
• -48 VDC (nominal) operating voltage
• 300A system rating / 150A per bus
• Configurable for dual bus or single bus operation
• 12 outputs (6/bus) rated at 50A each with remote ON/OFF control
• TCP/IP remote management and power control of individual outputs using secure web browser or SNMPv3
• Monitoring and alarm reporting of each output
• Each output has adjustable load-shed settings
• Network ping detection circuitry
• Adjustable power-on sequencing
• Data logging
• 2-year warranty

Electrical

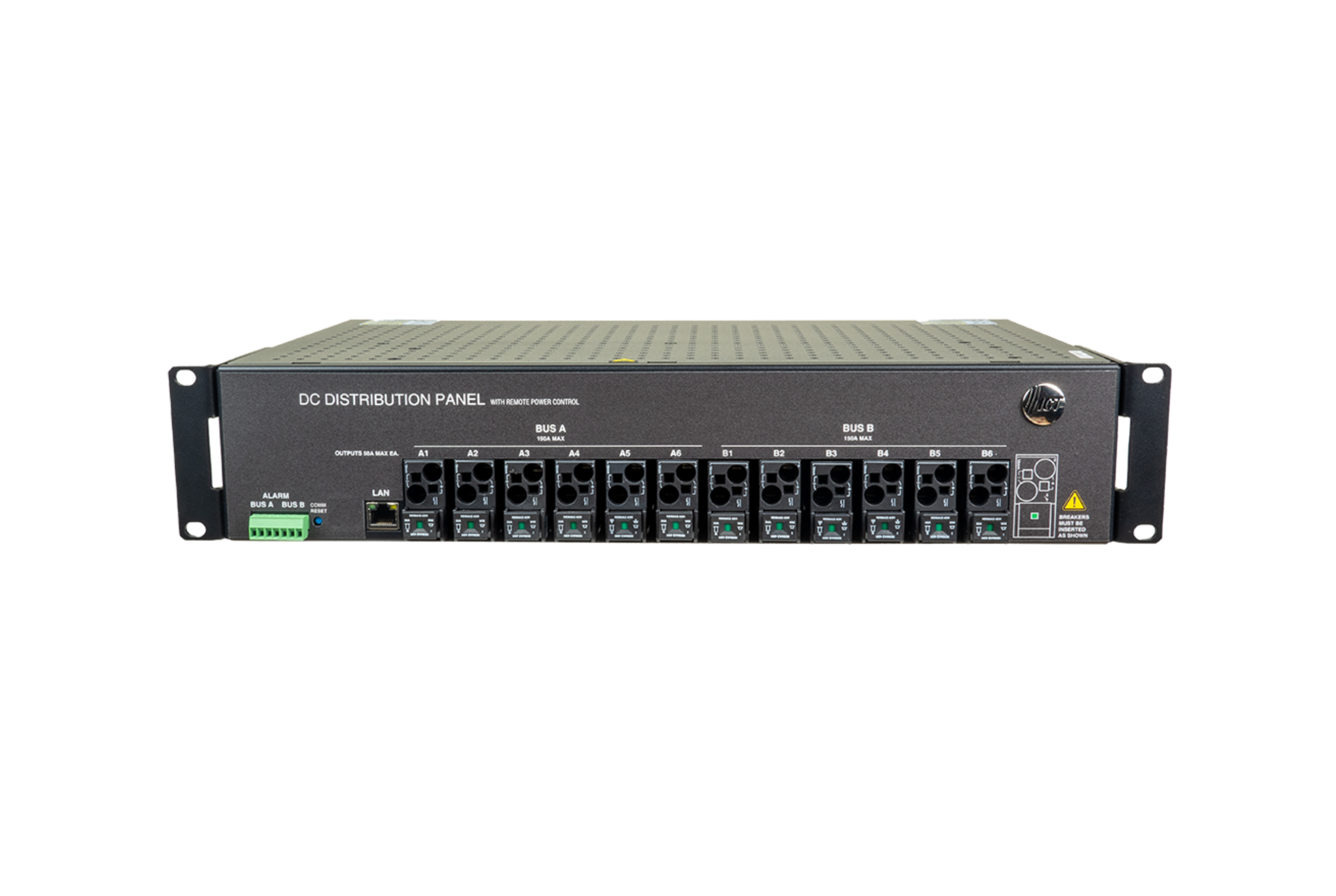

ICT300DB-12IRC

• Operating Voltage Range: -30 to -60V
• System Current Rating: 300 A
• Bus Current Rating: 150 A each
• Number of Outputs per bus: 6
• Max. Output Breaker Rating: 63 A
• Max. Load Output Rating: 50 A per output
• Electro-mechanical Output Relay Logic: Normally open

Mechanical

• Form Factor: 2RU – 19 inch rack mount
• Dimensions (L x W x H): 13.4 x 19.0 x 3.5 in. 339 x 483 x 90 mm
• Weight: 17.0 lbs / 7.7 kg
• Input Connectors: Bus bars with dual 5/8″ holes (rear access)
• Output Connectors: Integrated into breakers (front access)

Environmental

• Operating Temperature Range: -30°C to +60°C
• Output Derating: 2% /°C (above 50°C)
• Storage Temperature: -40°C to +70°C
• Storage Humidity: 30-90% RH
• Cooling: Convection

Applications:

• Radio Access Networks / 5G
• DAS
• Fixed Wireless Broadband
• Remote Sites
• Fiber Networks
• Cable Headend
• Data Centers
