ICT 1500-watt hot-swappable DC power modules are designed to provide high performance, reliability, and redundancy for ICT 48- and 24-volt DC power systems. The high efficiency modules are compatible with the ICT Modular Power Series, MPS Ultra, Hybrid Power Series and Hybrid Ultra which offer remote Ethernet-based communications for monitoring and control; enhanced security and reliability features including SNMPv1/v2c/v3 and TLS 1.3; fan fail detect alarms; and advanced battery management features for sealed lead acid and lithiumion batteries.

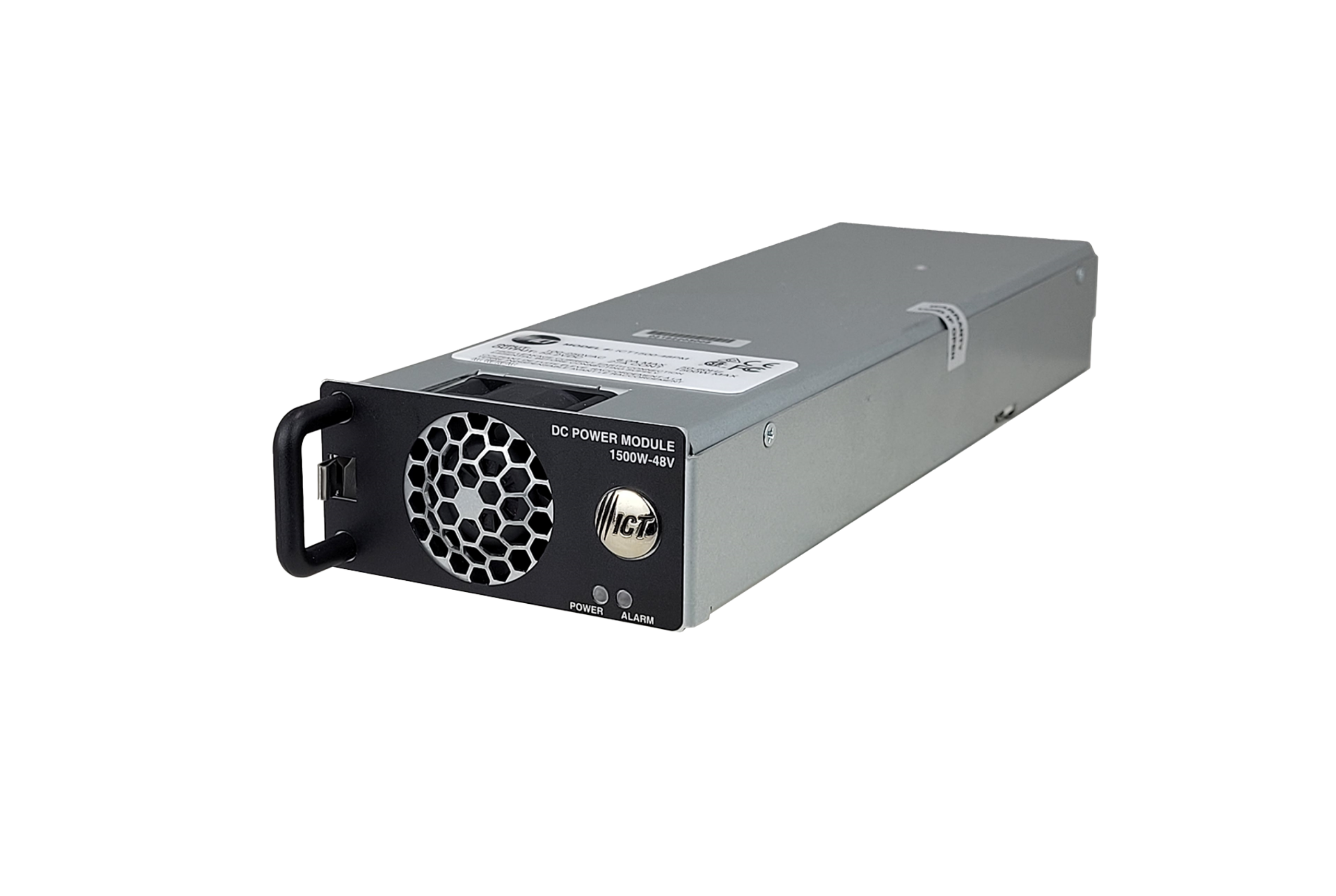

ICT 1500-Watt DC Power Module
For ICT Modular Power Series, MPS Ultra, Hybrid Power Series and Hybrid Ultra DC Power Systems
Applications
- Fixed Wireless Access
- Land Mobile Radio
- FTTP/H PON GPON
- Distributed antenna systems (DAS)
- Traffic Management
- Industrial DC power
Electrical
AC Input
- Nominal Input Voltage: 120/240VAC
- Input Voltage Range: 90-300 VAC (derate to 50% power at 90VAC)
- AC Input Current per Module (220VAC nom.): 8.0A
- AC Input Current per Module (110VAC nom.): 8.0A
- Power Factor (typical): 0.99
- Frequency: 50/60Hz
Power Modules
ICT1500-48PM
- Output Voltage: +/- 55.2 VDC
- Output Voltage Range (adjustable): 46.0 – 60.0 VDC
- Power output per Module (230VAC nom.): 1500W
- Power output per Module (115VAC nom.): 900W
- Output Current per Module (230VAC nom.): 27A
- Output Current per Module (115VAC nom.): 16A
- Efficiency (peak): 95%
- Output ripple (rms):< 60mV
ICT1500-24PM
- Output Voltage: +/- 27.6 VDC
- Output Voltage Range (adjustable): 23.0 -31.0 VDC
- Power output per Module (230VAC nom.): 1500W
- Power output per Module (115VAC nom.): 900W
- Output Current per Module (230VAC nom.): 54A
- Output Current per Module (115VAC nom.): 32A
- Efficiency (typical): 94%
- Output Ripple (rms): <40mV
Mechanical
- Weight (lbs/kg) : 3.2lbs / 1.45 kg
- Dimensions – H x W x L: 1.7 x 3.7 x 11.4 in., 45 x 93 x 290 mm
Environmental
- Operating Temperature Range: -30° to +60° C
- Output Derating: 2% /° C (above 50° C)
- Storage Temperature: -45° to +85° C
Regulatory
Safety:
- EN 62368-1
- UL/CSA60950-1
- UL/CSA 62368-1
Emissions (48/24V only)
- CE Class A
- ICES-003
- EN55032
- EN 61000-3-2
- EN 61000-3-3
Environmental
- RoHS
