Features

• MIL-STD-810G tested and verified for shock and vibration, salt fog, humidity, sand and dust, including Method 507.6 Procedure II Aggravated, Method 514.7 Procedure I Category 4, and Method 510.6 Procedure I Blowing Dust.
• Supports +12, +24, and +/-48 volts DC applications
• 200-amp peak system current / 180 amps continuous
• Dual-bus architecture (Bus A & Bus B)
• Configurable for dual bus or single bus operation
• Total of 12 breaker output positions rated up to 25 amps (12 & 24 V) and 15 amps (48 V) per output
• 6 outputs per bus
• Front-mounted breakers
• Standard TCP/IP Ethernet communications provides full remote monitoring and control capabilities
• Network security protocols include HTTPS, TLS 1.3, SNMP v1/v2c/v3
• Reporting of total system current (Bus A & Bus B), individual load current, Bus A and Bus B system voltage, and fuse or breaker status
• Alarm reporting via text or email notification
• Remote individual output power toggling
• Automatic load shedding disconnects non-critical loads when on battery power (user defined)
• Network watchdog automatically reboots routers or switches when no response is received
• Five digital site monitoring input contacts
• Up to 30 days of data logging
• Heavy duty input stud connectors
• Form C alarm contacts
• 1RU 19-inch rackmount form factor
• Two-year warranty

Benefits

• Designed and engineered to meet the challenging MIL-STD-810G standard for harsh environmental and battlefield conditions. This design has been tested and verified for military use.
• Full remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs
• Improve the quality of service and uptime of your network by quickly resolving power issues remotely
• Increase battery backup time with automatic load shedding by allowing non-critical loads to be removed from the system, maintaining critical loads for longer
• No additional software required as monitoring and control is provided via an onboard web-based server
• Support mixed-voltage sites with dual-bus architecture

Electrical

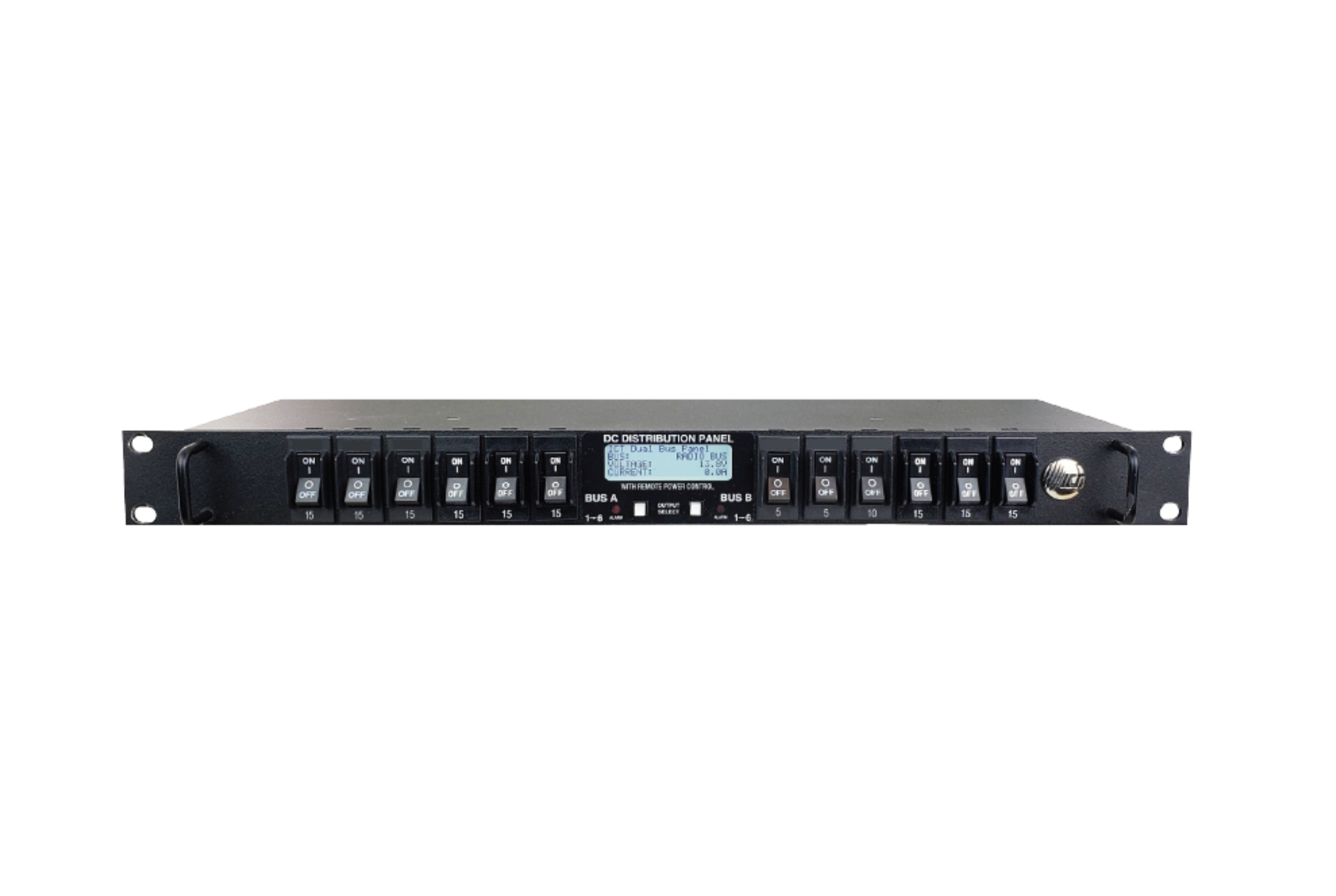

Power Specifications: ICT200DB-12IRC

• Application Voltage (pos or neg gnd): 12, 24, 48VDC
• System Current Rating (peak/cont): 200A/160A
• Bus current Rating (peak/cont): 100A/80A
• Number of Outputs per bus: 6
• Operating Voltage Range: 10-60VDC
• Number of Breaker Outputs: 12
• Max Breaker Rating (12, 24V): 30A
• Max Breaker Rating (48V): 30A

Mechanical

• Form Factor: 1RU – 19 inch rack mount with handles
• Dimensions (L x W x H): 9.29 x 19.0 x 1.72 Inches
• Weight:7.0 lbs / 3.2 kg
• Connectors: M8 DC Input stud connectors, 10-22AWG cage clamp output terminal blocks

Environmental

• Operating Temperature Range: -20°C to +60°C

Regulatory

• ROHS, CE
