Features

• Supports +12 and +24, and volts DC applications
• 180-amp peak system current / 150 amps continuous
• 12 fused output positions rated up to 25 amps (12 & 24 V)
• Front-mounted fuses with LED indicators when fuse is blown
• TCP/IP Ethernet communications provides full remote monitoring and control capabilities
• Network security protocols include HTTPS, TLS 1.0, TLS 1.3, SNMP v1/v2c/v3
• Reporting of total system current, individual load current, system voltage, fuse status
• Alarm reporting via text or email notification
• Remote individual output power toggling
• Automatic load shedding disconnects non-critical loads when on battery power (user defined)
• Network watchdog automatically reboots routers or switches when no response is received
• Five digital site monitoring input contacts
• Up to 30 days of data logging
• Heavy duty input stud connectors
• Form C alarm contacts
• 1RU 19-inch rackmount form factor
• Two-year warranty

Benefits

• Full remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs
• Improve the quality of service and uptime of your network by quickly resolving power issues remotely
• Increase battery backup time with automatic load shedding by allowing non-critical loads to be removed from the system, maintaining critical loads for longer
• No additional software required as monitoring and control is provided via an onboard web-based server
• Front-mounted fuses allow for quick and easy replacement

Electrical

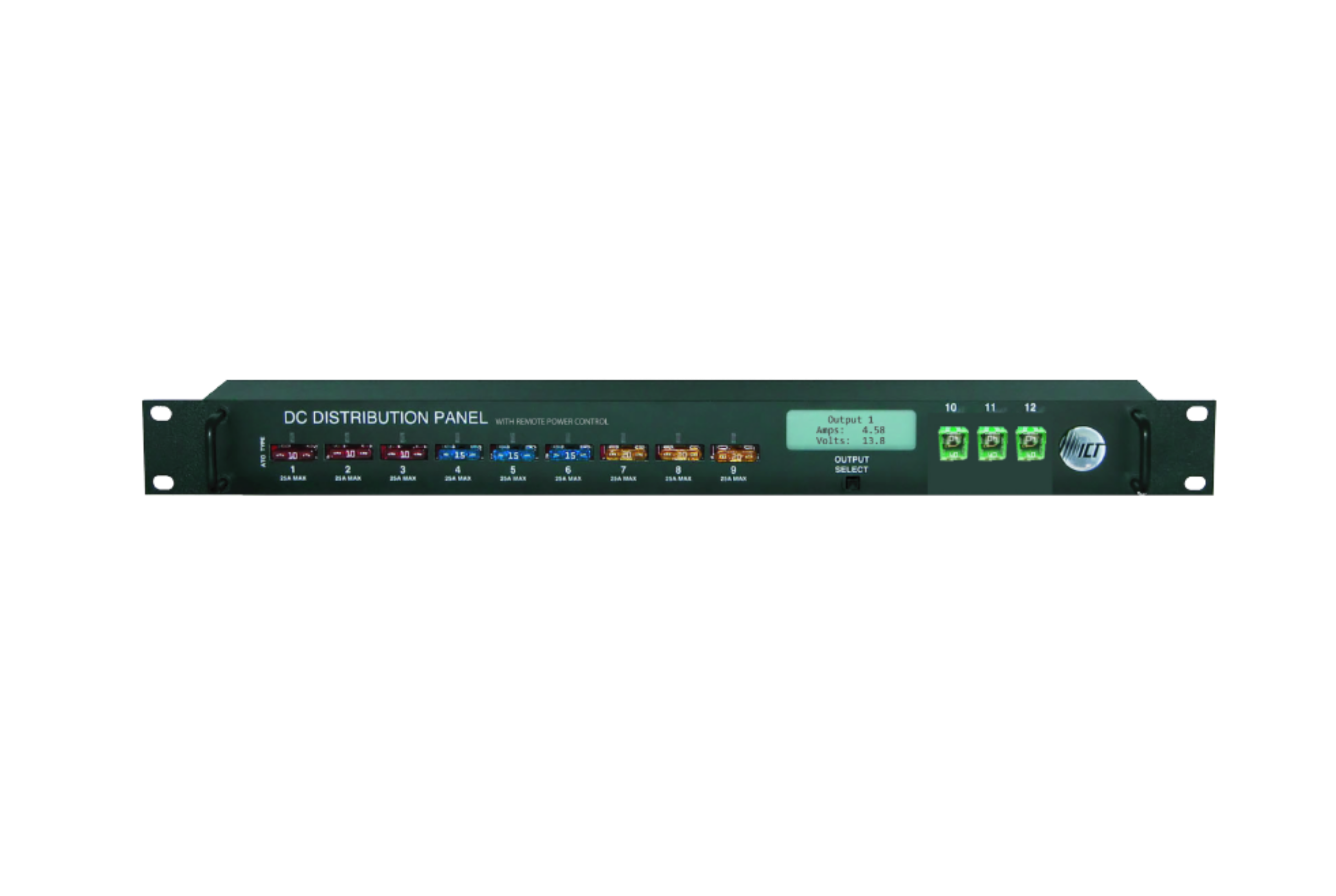

Power Specification: ICT180SE-12IRC

• Nominal Application Voltage: 12 and 24VDC
• Operation Voltage Range: +10 to +30VDC
• Panel Current Rating (Peak): 180A
• Panel Current Rating (Continuous): 150A
• Number of ATO Fused DC Outputs: 9
• ATO Fuse Rating (Max): 25A
• Number of JCASE Fuse Outputs: 3
• JCASE Fuse Ratings (Max): 40A

Mechanical

• Form Factor: 1RU – 19 inch rack mount with handles
• Dimensions (L x W x H): 9.29 x 19.0 x 1.72 in. / 236 x 483 x 44 mm
• Weight:7.0 lbs / 3.2 kg
• Fuse Position: Front panel
• LED Alarm Indicators: Front panel
• LCD Digital Display: Front panel
• Power Connectors: DC input stud connectors, DC output terminal blocks, Form C alarm contacts, grounding stud, RJ-45 Ethernet
• Site Monitoring: Five external dry alarm contacts. Monitors external contact closure, configurable for NO or NC logic, applied voltage 3.3V, 0.4mA for contact closure detection

Environmental

• Operating Temperature Range: -30°C to +60°C
