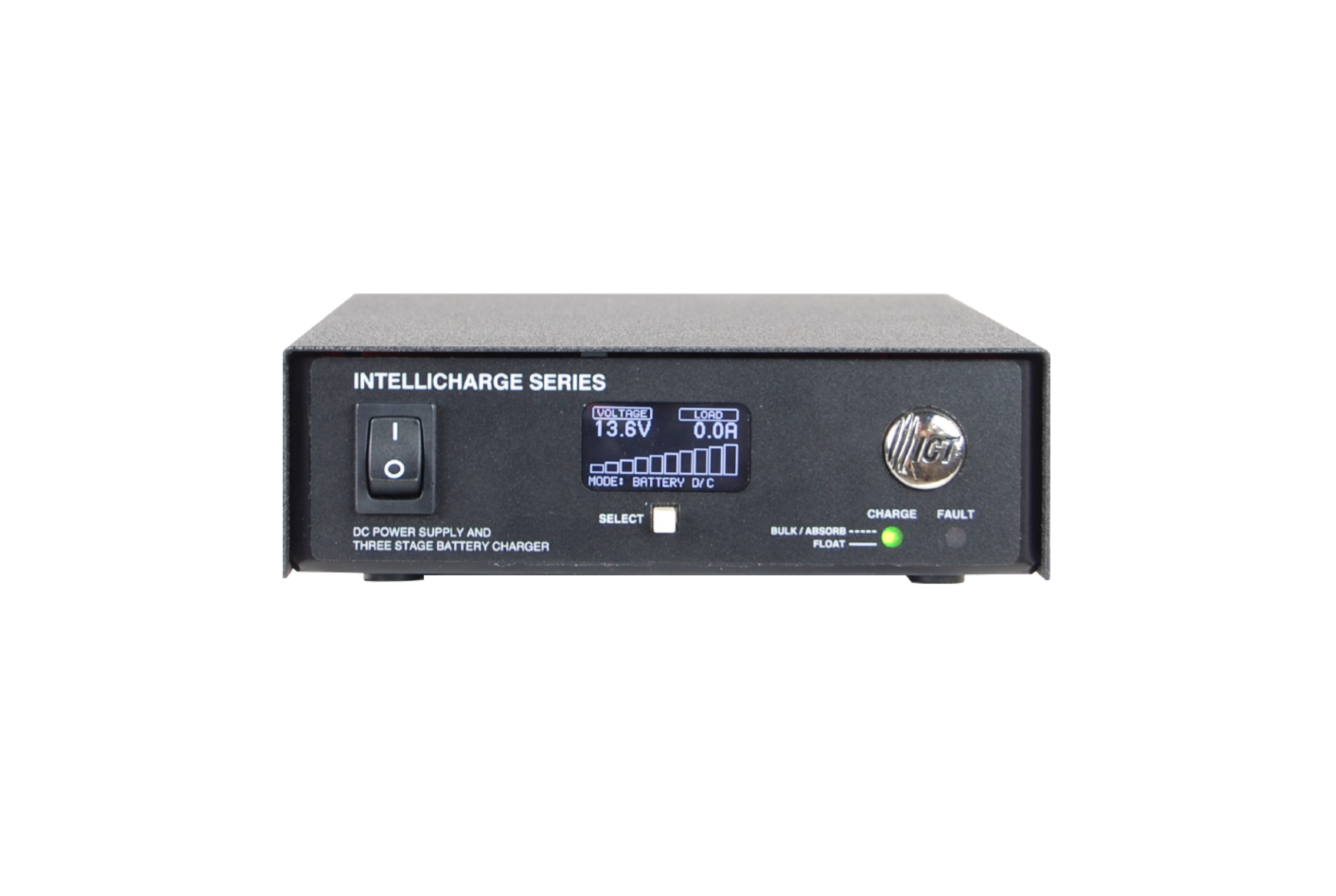

ICT IntelliCharge Series
DC Power Supply with 3-Stage Battery Charger and Integrated LVD 12, 24 and 48 Volt DC Models
The ICT IntelliCharge Series is a high efficiency DC power supply with integrated battery charger that allows the battery charge to be regulated independently from the DC load outputs, allowing the battery to receive the optimal charging current without the load being affected. Available in two power levels supporting 48-, 24- or 12-volt outputs with an optional OLED display, 19-inch rackmount and DIN-mount options, and a temperature probe for temperaturecompensated charging, the IntelliCharge Series is ideal for smaller communication sites with battery backup requirements.
Features
- 360 watts of output power
- 12-, 24- or +/- 48-volt DC output
- Intelligent three-stage battery charging
- Independently regulated battery charging terminals
- Adjustable charge current limit
- Integrated low voltage disconnect
- User selectable flood, AGM and gel battery types supported
- Temperature-compensated charging
- Form-C alarm contacts
- Two-year warranty
Benefits
- Provides three-stage charging for optimal battery charging
- Integrated low voltage disconnect protects batteries from over-discharge
Electrical
- Continuous Output Current – 12V: 30A
- Continuous Output Current – 24V: 15A
- Continuous Output Current – 48V: 7.5A
- Efficiency (typical) – 12V: 90% @ 220VAC
- Efficiency (typical) – 24V: 91% @ 220VAC
- Efficiency (typical) – 48V: 93% @ 230VAC
- Default Output Float Voltage – 12V: 13.65VDC
- Default Output Float Voltage – 24V: 27.3VDC
- Default Output Float Voltage – 48V: 54.6VDC
- Input Voltage Range: 100-265VAC
- Frequency Range: 50/60Hz
- Power Factor (typical): 0.99
- Output Ripple – all models: <50mV RMS
Regulatory
- CSA22.2 No. 60950-1, FCC part 15 Class B, RCM, CE, RoHS
Battery Management
- LVD Disconnect Voltage – 12V: 11.0VDC
- LVD Disconnect Voltage – 24V: 22.0VDC
- LVD Disconnect Voltage – 48V: 44.0VDC
- LVD Reconnect Voltage – 12V: 12.5VDC
- LVD Reconnect Voltage – 24V: 25.0VDC
- LVD Reconnect Voltage – 48V: 50.0VDC
