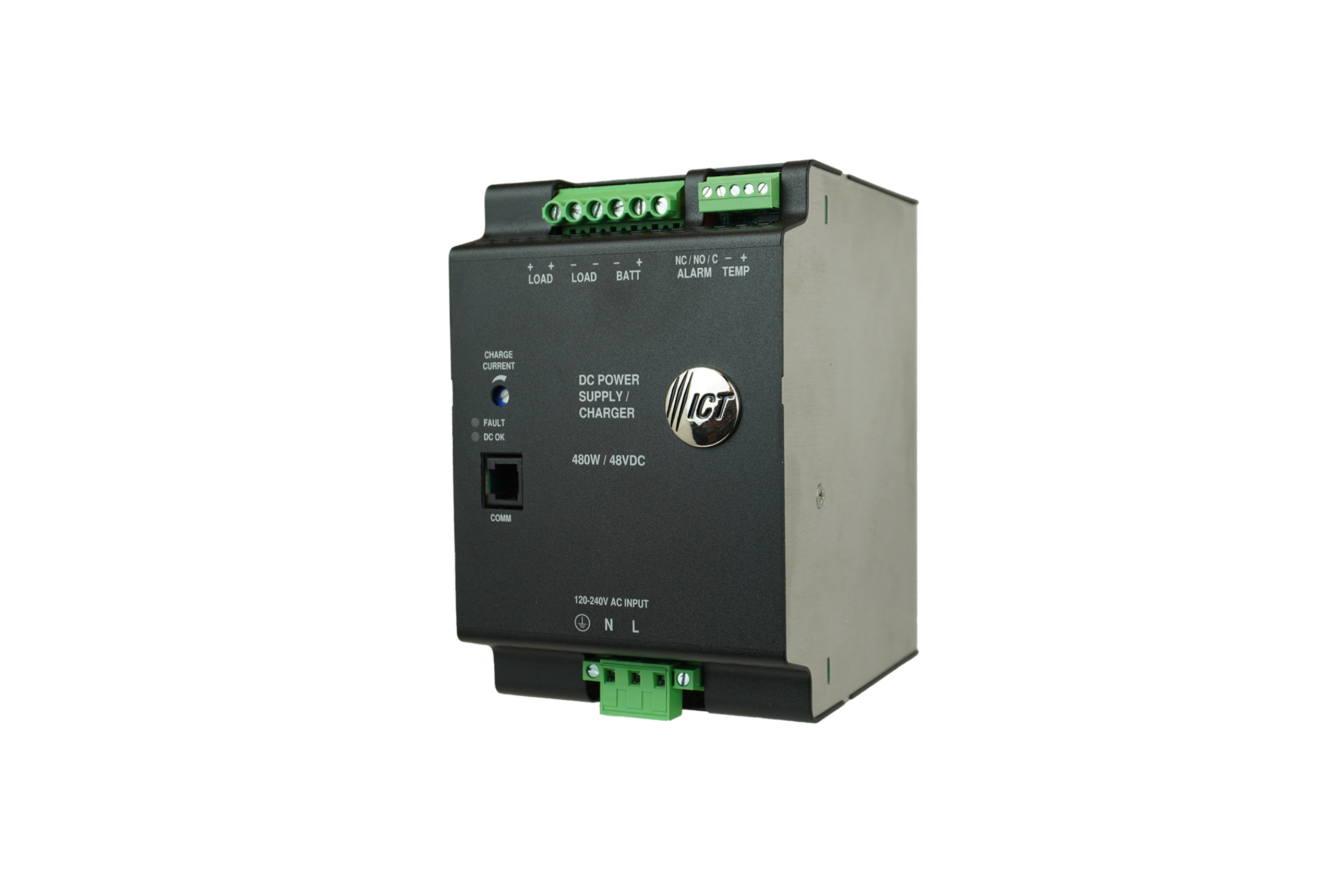

The DIN Series Power Supply Unit from ICT is a DIN-rail mount, 360-watt or 480-watt DC power supply with integrated battery charging with LVD, designed to be used in 24- or 48-volt DC applications. When combined with the DIN Series power distribution unit, remote monitoring and control is available using a secure, easy-to-use web-browser interface.

Features

• 360 or 480 watts of output power
• 24- or +/-48-volt DC output
• Battery backup terminals with low voltage disconnect and adjustable charge current limit
• Universal power factor corrected input
• 108 – 264 VAC input voltage range
• Communications link provides remote monitoring and control capabilities (only when used with ICT DIN Series power distribution unit)
• Form C alarm contacts
• DIN-rail mount form factor
• Support for lead-acid and lithium-ion battery types
• Two-year warranty

Benefits

• Remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs (Feature only available when used in conjunction with the DIN Series power distribution unit)
• Improve the quality of service and uptime of your network by quickly resolving power issues remotely

Electrical

AC Input

• Nominal Input Voltage: 120/240VAC
• Input Voltage Range: 108-264 VAC
• Power Factor (typical): 0.99
• Frequency: 50/60Hz

Electrical Specifications

Model No

• ICT360-48DIN
• ICT360-24DIN
• ICT480-48DIN
• ICT480-24DIN

Nominal DC output voltage

• +/- 48 VDC
• +/- 24 VDC
• +/- 48 VDC
• +/- 24 VDC

DC Output Voltage

• 55.2 VDC
• 27.6 VDC
• 55.2 VDC
• 27.6 VDC

Power Output

• 360 W
• 360 W
• 480 W
• 480 W

Output Current

• 6.5 A
• 13 A
• 10 A
• 20 A

Efficiency (peak)

• 90 %
• 91 %
• 95 %
• 93 %

Output ripple (rms)

• 60 mV
• 50 mV
• <100 mV
• <100 mV

Mechanical

• Model No: ICT360-xxDIN, ICT480-xxDIN
• Dimensions – H x W x L : 5.74 x 3.41 x 5.3 in. / 146 x 86.6 x 135 mm, 5.8 x 3.8 x 5.4 in. / 147 x 96 x 138 mm
• AC Input Connector: Terminal Block, #12 – #16 AWG, Terminal Block, #12 – #16 AWG
• DC output connectors: Terminal Block, #12 – #14 AWG, Terminal Block, #10 – #14 AWG
• Remote alarm connectors: Terminal Block, #22 – #26 AWG, Terminal Block, #22 – #26 AWG
• Mounting: TS35 (EN50022) standard DIN rail mount, TS35 (EN50022) standard DIN rail mount
• Weight: 3.6lbs / 1.45 kg, 3.98 lbs. / 1.81 kg

Environmental

• Operating Temperature Range: -30°C to +60°C (derate > 40°C)
• Cooling: Convection, fanless
• Storage Temperature: -45° to +85° C

Regulatory

Safety:

•  Designed to meet EN60950-1

Emissions (48/24V only)

• Designed to meet EMC compliance with FCC Part 15, Class B, EN61000-6-1, EN610006-3, EN61000-3-2, RoHS, CE
