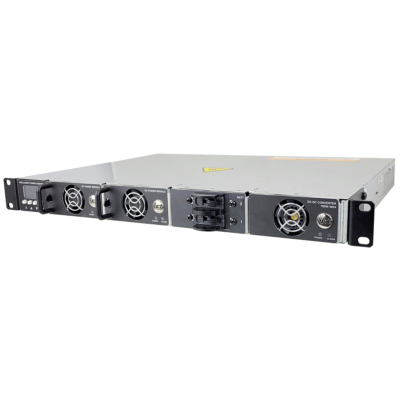

The ICT Hybrid Power Series combines a 48 or 24 volt DC power system with a factory installed 12 or 24 volt DC converter module to provide up to 3,000 watts maximum power flexible hybrid DC solution for wireless network sites. The Hybrid Power Series accepts one or two hot swappable 48 or 24 volt, 1500-, 1000-, or 700-watt DC Power Modules. The integrated DC converter provides up to 700 watts of 12 or 24 volts DC output through a separate output bus bar.

Features

• Up to two 1500-, 1000-, or 700-watt, 48- or 24-volt DC power modules
• Total maximum total output power 3,000 watts
• Integrated 700-watt 12-or 24-volt DC power converter
• Dual 100-amp battery disconnect breakers
• Integrated 150-amp low voltage disconnect with adjustable setpoints
• 90 to 95% efficiency
• –30°C to +60°C operating temperature range
• Standard TCP/IP Ethernet communications provides full remote monitoring and control capabilities
• Network security protocols include HTTPS, TLS 1.3, SNMP v1/v2c/v3
• User adjustable output voltages and battery charge current limit
• Advanced battery management features including state of charge, estimated run-time remaining, battery discharge testing, temperature compensated charging
• Alarm reporting via text or email notification
• Battery temperature and site monitoring input contacts
• 1RU 19-inch rackmount form factor
• Support for lead-acid and lithium-ion battery types
• Two-year warranty

Benefits

• Configurable DC power system provides flexibility and scalability to meet application requirements
• Integrated 700-watt DC-DC power module provides a secondary voltage for sites with mixed voltages requirements – 48 & 24 or 48 & 12 VDC
• Reduce total cost of ownership by reducing site visits and maintenance costs due to remote monitoring and control functionality
• Improve the quality of service and uptime of your network by quickly resolving power issues remotely
• User-scheduled battery testing proactively alerts users when a connected backup battery is not holding charge
• Real-time reporting on battery state of charge, battery run-time remaining, and battery voltage levels
• Remotely monitor and toggle power to individually connected load devices utilizing load distribution module
• All connection points are external, allowing for quick and easy installation
• No additional software required as monitoring and control is provided via an onboard web-based server

Electrical

AC Input

• Nominal System Voltage 120/240/VAC
• Input Voltage Range 100-300-VAC
• Power Factor (typical) 0.99
• Frequency 50/60Hz

700W Power Modules

• Model Numbers: ICT700-24PM, ICT700-12PM
• Nominal Voltage: 24, 12
• Output Voltage Range (adjustable): 23.0 -31.0 VDC, 11.5 – 15.5 VDC
• Output Current per Module: 25A, 50A
• Power Factor: 0.99 typ., 0.99 typ.
• Efficiency (typical): 91%, 90%
• Output Ripple (rms): 30mV, 30mV

1000W Power Modules

• Model Number: ICT1000-48PM
• Nominal Voltage: 48
• Output Voltage Range (adjustable): 46.0 – 60.0 VDC
• Output Current per Module: 18A
• Power Factor: 0.99 typ.
• Efficiency (typical): 91%
• Output Ripple (rms): <60mV

1,500W Power Modules

• Model Numbers: ICT1500-48PM, ICT1500-24PM
• Nominal Voltage: 48, 24
• Output Voltage Range (adjustable): 46.0 – 62.0 VDC, 23.0 -31.0 VDC
• Output Current per Module (230VAC nom.): 27A, 54A
• Output Current per Module (115VAC nom.): 16A, 32A
• Power Factor: 0.99 typ., 0.99 typ.
• Efficiency (typical): 95%, 94%
• Output Ripple (rms): 60mV, 40mV

DC Converter

• Power Output: 700W, 700W
• Nominal Voltage: 13.8, 27.6
• Output Voltage Range (adjustable): 11.5 – 15.5 VDC, 23.0 – 31.0 VDC
• Output Current per Module: 50A, 25A
• Power Factor: 0.99 typ., 0.99 typ.
• Efficiency (typical): 92%, 92%
• Output Ripple (rms): 20mV, 30mV

Mechanical

• AC Input Connectors (dual): Terminal Block, #8 – #16 AWG
• DC Output Connector: Busbars with 1/4-20 x 7/8” bolts
• Ethernet Connector: RJ-45
• Remote Alarm Connectors: Terminal Block (#16 – 24 AWG)
• Mounting: 1RU, 19 inch rack mount
• Weight (exc. Power Modules): 8.1lbs / 3.7 kg
• Dimensions – H x W x L: 1.74 x 19.0 x 15.7 in.. 44 x 483 x 398 mm

Environmental

• Operating Temperature Range: -30°C to +60°C
• Output Derating: 2% / °C (above 50° C)
• Storage Temperature: -45° to +85° C

Regulatory

Safety

• EN 60950-1

Emissions (48/24V only)

• EN61000-6-1
• EN61000-6-3
• EN61000-3-2
• RoHS
• CE

Communications

• Front Display: High resolution OLED with function keys
• Remote Communications: TCP/IP 10/100 Base-T
• I.P. Protocols: HTTP/HTTPS, SMTP, SNMPv1/v2/v3
• Inputs: 4 digital, 1 analog temp sensor contacts

Battery Management

• Battery Circuit Breaker Single or Dual 100A
• Low Voltage Disconnect 150A contactor
