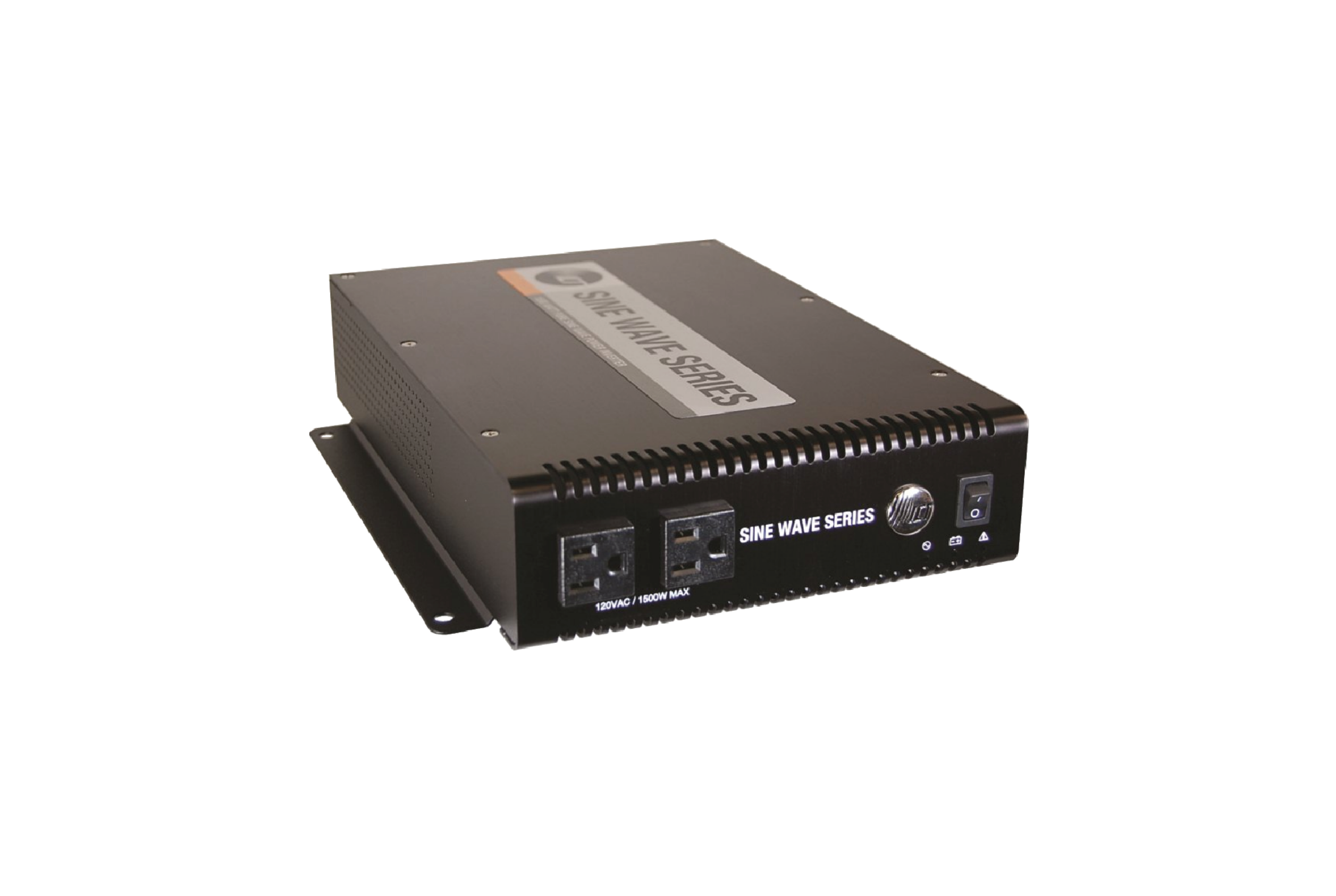

ICT Sine Wave Series

1500 Watt DC to AC Pure Sine Wave Inverter for 115 Volt AC Applications

The Sine Wave Series from ICT is an intelligent, high-performance, 1500-watt pure sine wave inverter that includes a secure, easy-to-use web-browser interface, providing remote monitoring and power control with alarm reporting over an Ethernet link, along with SNMP support for integration into your wireless network management system. Ideal for providing critical, uninterruptable AC power to AC-powered network devices.

Features

1500 watts of output power / 3000-watt surge capability
115 VAC output • 12-, 24- or +/- 48-volt DC input models
Standard TCP/IP Ethernet communications provides full monitoring and control capabilities
Standard static transfer switch for automatic transfer to battery when AC mails fails
Low voltage disconnect for when battery becomes discharged
Network watchdog feature will cycle power to connected network devices of no response ping is received
Alarm reporting via text or email notification
Rackmount kit option for 19-inch rack installation
Two-year warranty

Benefits

Reduce total cost of ownership by reducing site visits and maintenance costs due to remote monitoring and control functionality
Improve the quality of service and uptime of your network by quickly resolving power issue remotely
Remotely power cycle connected AC load devices
All connection points are external, allowing for quick and easy installation
No additional software required as monitoring and control is provided via an onboard web-baser server

Electrical

Continuous Output Power:1500 Watts
Surge Power Output (2 seconds): 3000 Watts
Peak Efficiency: 93%
Input Voltage Range – 12V: 10.5 – 16.0 VDC
Input Voltage Range – 24V: 21.0 – 32.0 VDC
Input Voltage Range – 48V: 42.0 – 64.0 VDC
Low Voltage Shutdown – 12V: 10.5 VDC
Low Voltage Shutdown – 24V: 21.0 VDC
Low Voltage Shutdown – 48V: 42.0 VDC
No Load Current Draw: <18 Watts
Frequency Range – 115VAC: 115 VAC +/- 5VAC, 60Hz +/-0.2Hz
Harmonic Distortion (typical): < 3%

Mechanical

Dimensions (L x W x H): 12.9 x 8.1 x 2.6 inches / 328 x 205 x 65 mm
Weight: 8.0 lbs / 3.6 kg
DC Input Connectors (rear): Bus bars, 5/16″ / 8mm holes
AC Outputs: Rear – terminal block, Front – dual NEMA 5-15P
Transfer Switch Connector: Rear terminal block
Remote Alarm Connectors: Terminal Block (#16 to #24 AWG)

Environmental

Operating Temperature Range: -30°C to +60°C

Regulatory

FCC Class A, ROHS

Communications

All models include Form C contacts and factory installed RJ45 Ethernet port with built-in web server and intuitive graphical user interface. Allows remote monitoring of inverter conditions including battery voltage, output voltage, output power and alarm conditions. Remote management features include turning AC outputs off and on, configuring user, network, email and alert settings, and setting up the network watchdog feature for auto restarting if I.P. connectivity is interrupted. SNMPv1/2c is supported for integration with network management systems.
