Features

• Support 24, and +/- 48-volt DC applications
• 200-amp system current / 100 amps per bus
• Dual-bus architecture (Bus A & Bus B)
• Configurable for dual bus or single bus operation
• 20 GMT fuse output positions rated up to 16 amps continuous
• 10 outputs per bus / 20 outputs total
• Front-mounted fuses
• Standard TCP/IP Ethernet communications provide full remote monitoring and control capabilities
• Network security protocols include HTTPS, TLS 1.3, SNMP v1/v2c/v3
• Reporting of total system current (Bus A & Bus B), individual load current, Bus A and Bus B system voltage, and fuse status
• Alarm reporting via text or email notification
• Remote individual output power toggling
• Automatic load shedding disconnects non-critical loads when on battery power (user defined)
• Network watchdog automatically reboots routers or switches when no response is received
• Five digital site monitoring input contacts
• Up to 30 days of data logging
• Heavy duty input stud connectors on front panel
• Form C alarm contacts
• 1RU 19-inch rackmount form factor
• Two-year warranty

Benefits

• Full remote monitoring and power control reduces site visits, lowering total cost of ownership and maintenance costs
• Improve the quality of service and uptime of your network by quickly resolving power issues remotely
• Increase battery backup time with automatic load shedding by allowing non-critical loads to be removed from the system, maintaining critical loads for longer
• 20 outputs in a 1RU form factor supports sites with multiple load devices without occupying precious rack space
• No additional software required as monitoring and control is provided via an onboard web-based server
• Support mixed-voltage sites with dual-bus architecture

Electrical

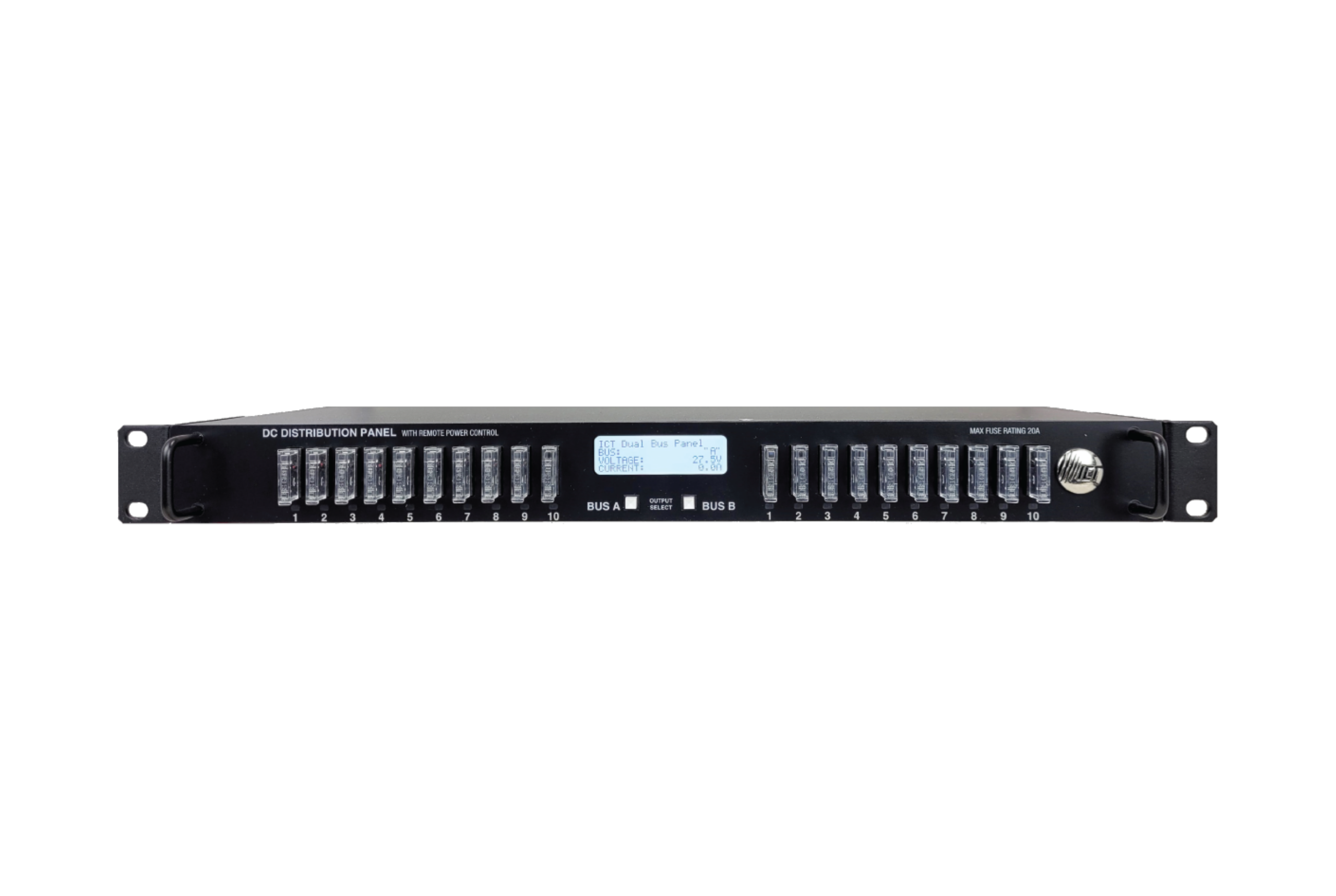

Power Specifications: ICT200DF-20BRC

• Operating Voltage Range (POS or Neg): 20-60VDC
• System Current Rating: 200A cont
• A/B Bus Current Rating: 100A cont
• Number of Outputs per bus: 10
• Max. GMT Fuse Size: 20A
• Continuous Load Rating: 16A per output

Mechanical

• Form Factor: 1RU – 19 inch rack mount
• Dimensions (L x W x H): 9.4 x 19.0 x 1.7 in. 236 x 483 x 45 mm
• Weight: 9.5 lbs / 4.3 kg
• Input Connectors: Dual 1/4″ – 20 studs with 0.625″ spacing
• Output Connectors: Cage clamp 20-22AWG

Environmental

• Operating Temperature Range: –20°C to +60°C
• Cooling: Convection

Regulatory

• ROHS, CE

Applications:

• Radio Access Networks
• DAS
• Fixed Wireless Broadband
• Remote Sites
• Secondary Distribution
