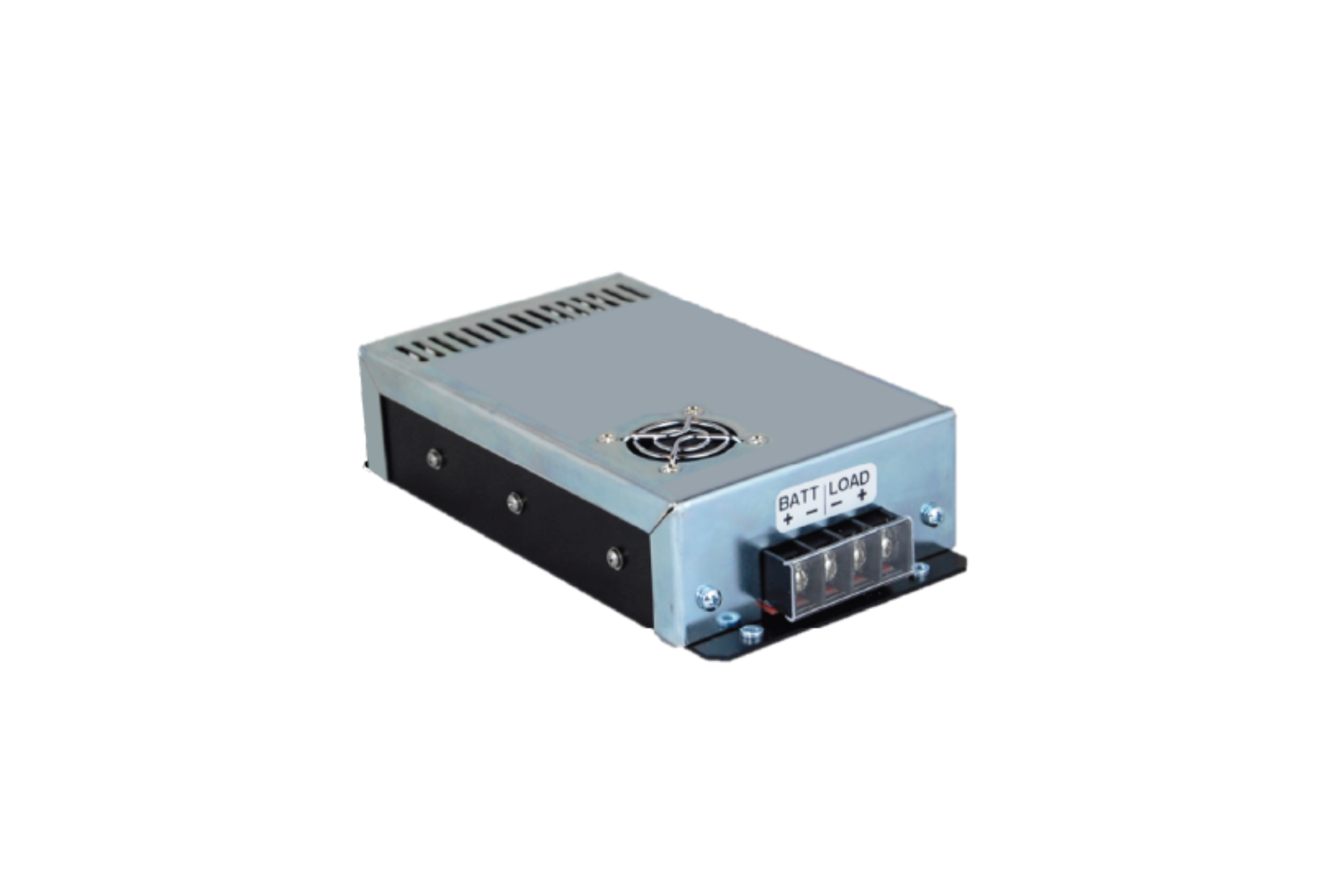

ICT Chassis Mount Series
DC Power Supply With Power Factor Correction and Battery Charging in 12 Volt DC Model
The ICT Chassis Mount Series is designed for global markets, and features universal power factor corrected AC input, high efficiency of 90%, CSA/UL 60950-1 certification, and is designed to meet FCC Class B emissions standards. The Chassis Mount Series incorporates current-limited battery backup terminals for float charging a battery. Output voltage is adjustable between 12.0 and 15.5 VDC at up to 20 amps output. Extended range operating temperature with temperature-controlled cooling fan and threaded mounting positions make the Chassis Mount Series ideal for outdoor power enclosures, small broadband or network power systems, and challenging industrial power applications.
Features
- Adjustable output voltage range
- Battery backup charging terminals
- Universal power factor corrected AC input
- 90% efficiency
- Wide operating temperature range
- Threaded mounting holes
- Automatic protection features
- 2-year warranty
Benefits
- Small, compact design supports variety of installation locations
- Separate battery charging terminals support applications requiring uninterrupted DC power
Electrical
- Input Voltage Range: 100-265VAC
- Frequency: 50/60Hz
- Power Factor: 0.99 (typical, 120VAC input)
- Efficiency (typical): 90% (typical, full load, 230VAC input
- Output Voltage: 13.8 VDC (+/- 0.5%)
- Output Current: 20 A
- Line Regulation: <0.1%
- Load Regulation: <0.2%
- Output Ripple (typical): <25mV rms
- Input Connector: 3 Position Terminal Block
- Output Connector: 4 Position Terminal Block
Mechanical
- Height: 1.85 Inches / 47 mm
- Width: 4.22 inches / 107 mm
- Depth: 7.97 inches / 203 mm
- Mounting: 4 Integrated PEM Nuts #6-32
- Grounding: 6-23 stud located near input connector
- Weight: 2.05 lbs. / 0.93 kg
Environmental
- Operating Temperature Range: -30°C to +60°C (derate > 50°C)
- Cooling: Fan Cooled
- Storage Temperature Range: -40°C to +70°C
- Operating Environment: Indoor, Pollution Deg 2
Regulatory
- CSA/UL 60950-1, FCC Part 15/B, EN60950-1, EN61000-3-2, EN55022, EN55024
