ICT Modular Power Series 2

ICT Modular Power Series

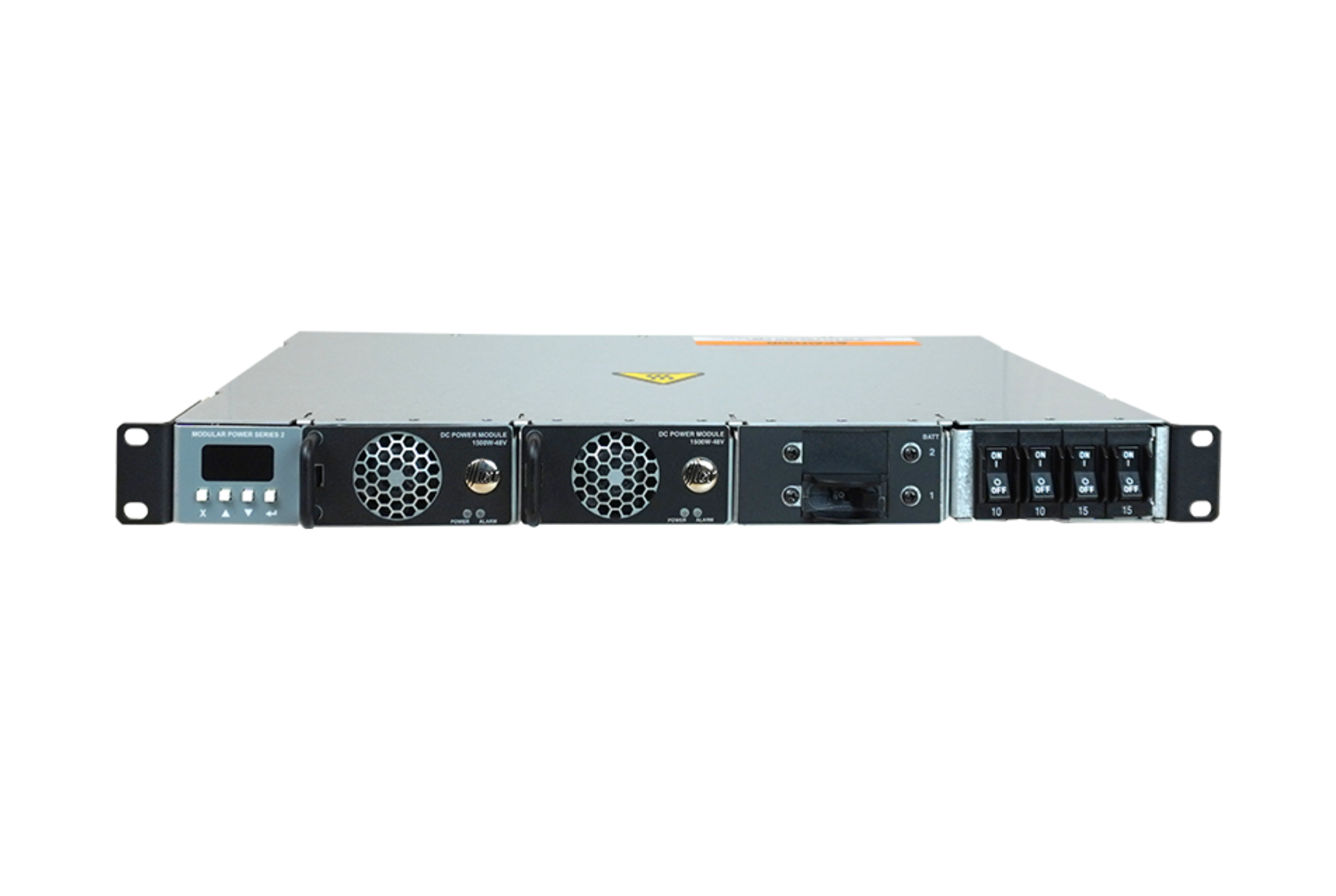

The next generation 1RU Modular Power Series 2 DC power system from ICT provides N+1 redundancy with 700-, 1000-, or 1500-watt hot-swappable DC power modules, providing up to 4,500 watts of power in 48-, 24-, or 12-volt models. With 10/100/1000 BASE-T Ethernet-based remote monitoring and DC power control; advanced battery management features, including an RS485 MODBUS interface which communicates directly with supported lithium-ion battery management systems; integrated 100-amp single or dual battery breakers; and up to eight fully managed load outputs which can be monitored and power-cycled remotely, the Modular Power Series 2 provides unmatched capability for demanding 48-, 24-, and 12-volt DC applications.

Features

Hot-swappable 700-, 1000- or 1500-watt power modules available with a 48-, 24- or 12volt output, provides up to 4,500 watts of output power in a 1U package
Available in various factory-installed configurations to accommodate either two or three DC power modules, with integrated with battery management and load distribution modules
Integrated 10/100/1000 BASE-T TCP/IP Ethernet communications for remote power monitoring and control
Integrated RS485 MODBUS port for direct communication with supported lithium-ion battery management systems
Network security protocols include HTTPS, TLS 1.3, SNMP v1/v2c/v3
Battery Management Module includes single or dual 100-amp battery breakers and low voltage disconnect relay, with features including battery state-of-charge reporting, runtime remaining, equalization charging and battery discharge testing
Load Distribution Module available with four fully managed outputs (up to eight managed outputs available)
Alarm reporting via text or email notification
Support for lead-acid and lithium-ion battery types
Two-year warranty

Benefits

Configurable DC power system provides flexibility and scalability to meet application requirements
Reduce total cost of ownership by reducing site visits and maintenance costs due to remote monitoring and control functionality
Improve the quality of service and up-time of your network by quickly resolving power issues remotely
User-scheduled battery testing proactively alerts users when a connected backup battery is not holding charge, allowing preemptive replacement, and ensuring reliable network backup upon AC power loss
Real-time reporting on battery state of charge, battery run-time remaining, and battery voltage levels
Remotely monitor and toggle power to individually connected load devices avoids unnecessary site visits
All connection points are external, allowing for quick and easy installation
No additional software required as monitoring and control is provided via an onboard web-base server

Electrical

AC Input

Nominal Input Voltage 120/240VAC
Input Voltage Range 100-300VAC
Power Factor (typical) 0.99
Frequency 50/60Hz

700W Power Modules

Model Numbers: ICT700-24PM, ICT700-12PM
Nominal Voltage: 24, 12
Output Voltage Range (adjustable): 23.0 -31.0 VDC, 11.5 – 15.5 VDC
Output Current per Module: 25A, 50A
Power Factor: 0.99 typ., 0.99 typ.
Efficiency (typical): 91%, 90%
Output Ripple (rms): 30mV, 30mV

1000W Power Modules

Model Number: ICT1000-48PM
Nominal Voltage: 48
Output Voltage Range (adjustable): 46.0 – 60.0 VDC
Output Current per Module: 18A
Power Factor: 0.99 typ.
Efficiency (typical): 91%
Output Ripple (rms): <60mV

1,500W Power Modules

Model Numbers: ICT1500-48PM, ICT1500-24PM
Nominal Voltage: 48, 24
Output Voltage Range (adjustable: 46.0 – 62.0 VDC, 23.0 -31.0 VDC
Output Current per Module (230VAC nom.): 27A, 54A
Output Current per Module (115VAC nom.): 16A, 32A
Power Factor: 0.99 typ., 0.99 typ.
Efficiency (typical): 95%, 94%
Output Ripple (rms): 60mV, 40mV

Mechanical

AC Input Connectors (dual): 3-pin removable plug, cage clamp type 8–22 AWG
DC Output Connector: Bus Bar, 5/16-inch bolt hole
Ethernet Connector: RJ-45
Alarm Output Connector: 3-pin removable plug, cage clamp type 16–24 AWG
Mounting: 1RU, 19 in. rack mount
Weight (Power Shelf Empty): 8.1 lbs / 3.7 kg
Weight (power Shelf + 4 Modules): 18.5 lbs/ 8.4 kg
Dimensions – H x W x L: 1.7 x 19.0 x 16.3 inches, 44 x 483 x 414 mm

Environmental

Operating Temperature Range: -30° to +60° C
Output Derating: 2% /° C (above 50° C)
Storage Temperature: -45° to +85° C

Regulatory

Safety:

UL/CSA 62368-1

Emissions

ICES-003, FCC Part 15/B, EN 61000-6-2, EN 61000-6-3, EIC 61000-4-5, CE, RCM and RoHS (700 W)
ICES-003, FCC Part 15/B, EN 61000-6-1, EN 61000-6-3, EIC 61000-3-2, EIC 61000-33, CE, RCM and RoHS (1000 W)
ICES-003, EN55032, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-5, CE, RCM and RoHS (1500 W)
